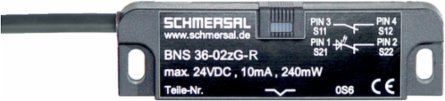

Schmersal 101217179 Magnetic Safety Sensor BNS 36-02/10Z-R, 10 m Cable, IP67, 545 g
Schmersal 101217179 Magnetic Safety Sensor BNS 36-02/10Z-R, 10 m Cable, IP67, 545 g
- MPN: 101217179
- PPN: SCM-101217179
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$225.83/ EA
Features
- Thermoplastic enclosure
- Long life
- no mechanical wear
- 88 mm x 25 mm x 13 mm
- Concealed mounting possible
- Insensitive to transverse misalignment
- Insensitive to soiling
Specifications
Electrical data
- Switching current, maximum
- 0.4 A
- Switching frequency, maximum
- 5 Hz
Switching capacity, maximum10 W
Note
- Note (General)

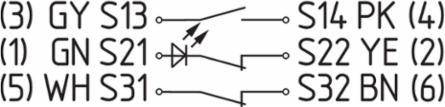

- Contact symbols shown for the closed condition of the guard device. | The contact configuration for versions with or without LED is identical.
Mechanical data - Dimensions
- Length of sensor
- 13 mm
- Height of sensor
- 25 mm
Width of sensor88 mm
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Safety classification - Safety outputs
- B
- 25,000,000 Operations
General data - Features
- Number of normally closed (NC)
- 2
- Number of safety contacts
- 2
Number of normally open (NO)1
Number of cable wires6
General data
- Standards
- BG-GS-ET-14 | EN IEC 60947-5-3
- Working principle
- Magnetic drive
- Enclosure material
- Glass-fibre, reinforced thermoplastic
Coding level according to EN ISO 14119Low
Installation conditions (mechanical)quasi-flush
Gross weight545 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+70 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Cable
- Wire cross-section
- 0.25 mm
- Material of the Cable mantle
- PVC
Length of cable10 m
Wire cross-section23 AWG

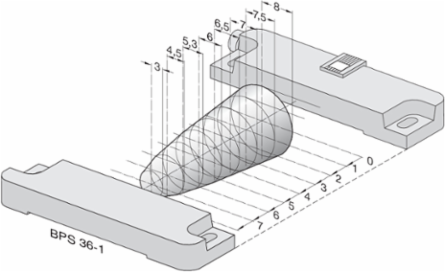

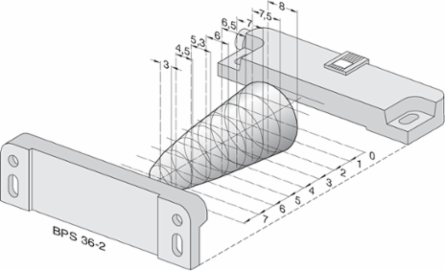

Mechanical data - Switching distances according EN IEC 60947-5-3
- Note (Switching distance Sn)
- Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the tolerance range.
- Assured switching distance "OFF" S
- 17 mm
Assured switching distance "ON" S6 mm
Mechanical data
- Actuating element
- Magnet
Direction of motionHead-on to the active surface
Accessory
- Recommendation (actuator)
- BPS 36-2
Recommended safety switchgearSRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | BG | cULus
