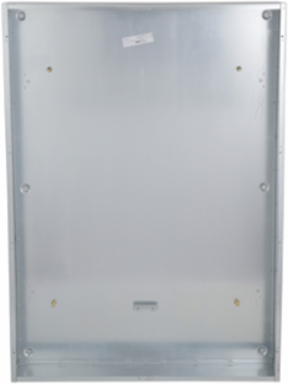

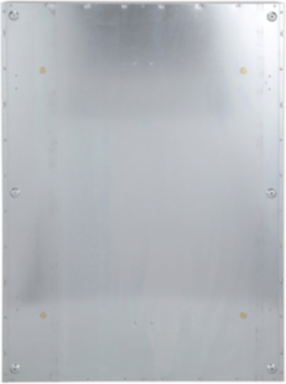

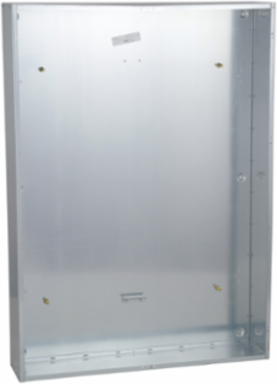

Square D HC4259DB I-Line Panelboard, 42 Inch W x 59 Inch H x 9.5 Inch D, NEMA 1, 1200A
- MPN: HC4259DB
- UPC: 785901790891
- PPN: SCH-HC4259DB
CAD
$477.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCP I-Line panelboard enclosure has a NEMA 1 degree of protection. Dimensions for this enclosure are 1499 mm (H),1067 mm (W),241 mm (D). This product comes with an 18 month warranty.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth9.5 in
Physical Attributes
- Enclosure Nominal Height
- 1499 mm
Enclosure Nominal Width1067 mm
Complementary Attributes
- Line Rated Current
- 1200 A, 600 A, 400 A, 800 A
Important Information Attributes
- Certificate Agency
- UL, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 75 kg CO2 eq., 75.1206271755979
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 292 kg CO2 eq., 291.5487797978493
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- HCP
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- I-Line
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 383 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Accommodate and protect control, command and protection devices in a single panelboard enclosure/box (2184.4 mm x 1066.8 mm x241.3 mm) with rated current In = 1200A , degree of protection IP = IP30 (NEMA 1 equivalence noted), degree of protection IK = IK07 , for a reference service life of 20 years, in commercial/industrial applications
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 98
- Width Nominal
- 42 in
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Carbon Footprint Of The Distribution Phase [A4]15.807332331779651, 16 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.08966397450317727, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-11-13
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Device Applicationpanelboard
Energy Efficiency OptimizedFalse
Product Or Component Typeenclosure
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2509035EN
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5][A5]
Energy Model - End Of Life [C1-c4][C1 - C4]
Height Nominal59 in
Halogen-free StatusHalogen free product
Package Weight(Lbs)54.699 kg
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Halogene Performance
- Halogen free product
- Mercury Free
- Yes
- Carbon Footprint
- 382.5664032797301
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2509035EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Silicon FreeYes
Environmental DisclosureENVPEP2509035EN
Halogen Content PerformanceHalogen free product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-10-15
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosure
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
