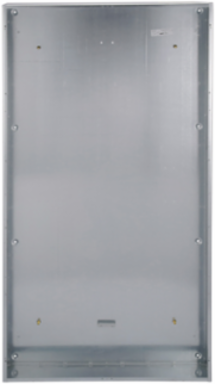

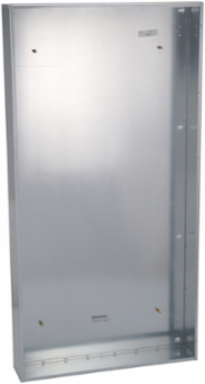

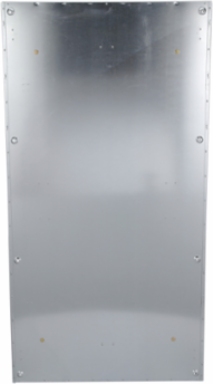

Square D HC4486DB Box, I-Line Panelboard, HCR-U, 44in W x 86in H x 9.5in D, Type 1

Box, I-Line Panelboard, HCR-U, 44in W x 86in H x 9.5in D, Type 1 - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/a0d769834c4515a63dc9ece691f961227578c4ae-medium.png

Box, I-Line Panelboard, HCR-U, 44in W x 86in H x 9.5in D, Type 1 - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/84ec1a8114ac657fc671a1db9cc6980873e4d7ee-medium.png

Box, I-Line Panelboard, HCR-U, 44in W x 86in H x 9.5in D, Type 1 - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/696c8a015617abd53749b5b5f0e9fd11fe11c656-medium.png

Box, I-Line Panelboard, HCR-U, 44in W x 86in H x 9.5in D, Type 1 - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/e81c0289b839a772b5582571b1480c94bcb67187-medium.png

Box, I-Line Panelboard, HCR-U, 44in W x 86in H x 9.5in D, Type 1

Square D HC4486DB Box, I-Line Panelboard, HCR-U, 44in W x 86in H x 9.5in D, Type 1

MPN: HC4486DB
UPC: 785901001218
PPN: SCH-HC4486DB

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$596.65/ EA

Qty:

Loading add to cart quantity...

Description

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCR-U I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 1200A. Dimensions for this enclosure are 2184 mm (H),1118 mm (W),241 mm (D). This product comes with an 18 month warranty.

Specifications

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1407017EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Complementary

Height: 86 in

Depth: 9.5 in

Enclosure Nominal Depth: 241 mm

Enclosure Nominal Width: 1118 mm

[In] Rated Current1200 A

Enclosure Nominal Height2184 mm

Net Weight83.91 kg

Specifications

Range Of Product: I-Line

Device Application: panelboard

Product Or Component Typeenclosure

Device Short NameHCR-U

Environment

Nema Degree Of Protection: NEMA 1

StandardsCSA || UL
