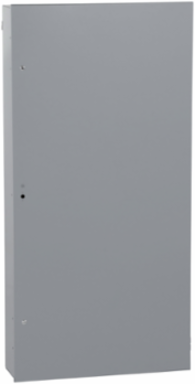

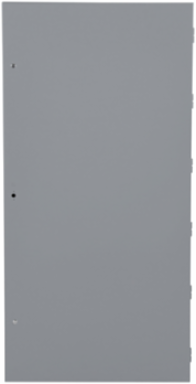

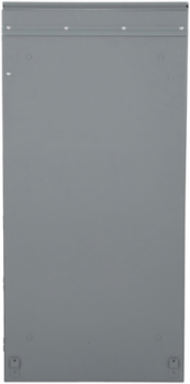

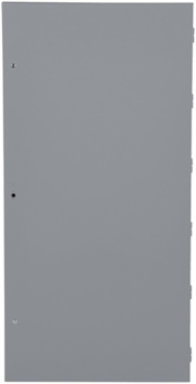

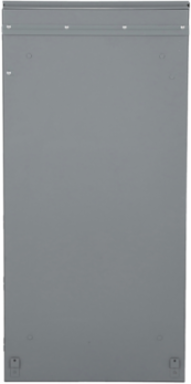

Schneider Electric HCJ3291WP I-Line Panelboard 32 Inch W x 91 Inch H x 9.5 Inch D 800 A NEMA 3R
- MPN: HCJ3291WP
- UPC: 785901492788
- PPN: SCH-HCJ3291WP
CAD
$3891.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric I-Line Panelboard offers a robust solution for managing electrical distribution, designed for efficient operation in demanding environments. With dimensions of 32 inches wide, 91 inches high, and 9.5 inches deep, this panelboard is tailored for maximum performance and reliability, accommodating up to 800 amps. Its NEMA 3R rating signifies effective protection against rain and wind, making it suitable for outdoor installation while ensuring safe and dependable operation. This panelboard is an ideal choice for applications requiring precise power management and durable construction.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 9.5 in |
|---|
Complementary Attributes
| Line Rated Current | 800 A |
|---|
Important Information Attributes
| Certificate Agency | UL, CSA |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 211 kg CO2 eq., 210.55309667086448 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 817 kg CO2 eq., 817.1723363485158 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2202 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Application | panelboard |
| Mounting Mode | wall mount |
| Product Or Component Type | enclosure |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2509035EN |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | [A5] |
| Energy Model - End Of Life [C1-c4] | [C1 - C4] |
| Height Nominal | 91 in |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 153.314 kg |
| Take-back | No |
| Customs Code | 7326908688 |
| Carbon Footprint Of The Distribution Phase [A4] | 44.305843783514604, 44 kg CO2 eq. |
|---|---|
| Carbon Footprint Of The Installation Phase [A5] | 0.25131615910675004, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Cover Type | lockable cover |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | I-Line |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 1 072 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Accommodate and protect control, command and protection devices in a single panelboard enclosure/box (2184.4 mm x 1066.8 mm x241.3 mm) with rated current In = 1200A , degree of protection IP = IP30 (NEMA 1 equivalence noted), degree of protection IK = IK07 , for a reference service life of 20 years, in commercial/industrial applications |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 98 |
| Width Nominal | 32 in |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | Yes |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2509035EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2509035EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Nema Degree Of Protection | NEMA 1, NEMA 3R |
|---|---|
| Halogene Performance | Halogen free product |
| Mercury Free | Yes |
| Carbon Footprint | 1072.2825929620017 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-10-15 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | enclosure |
|---|
| Range Of Product | I-Line |
|---|
