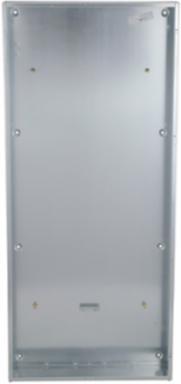

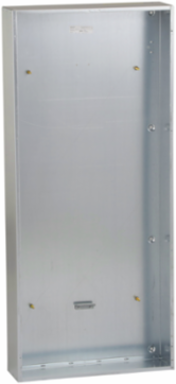

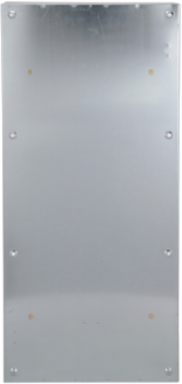

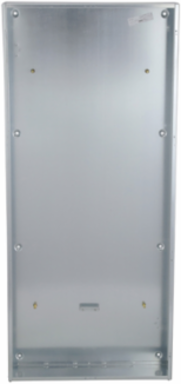

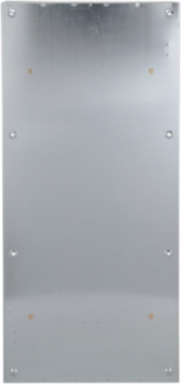

Square D HC3273DB9 I-Line Panelboard, 32 Inch W x 73 Inch H x 9.5 Inch D, 600-800A, NEMA 1
Square D HC3273DB9 I-Line Panelboard, 32 Inch W x 73 Inch H x 9.5 Inch D, 600-800A, NEMA 1
- MPN: HC3273DB9
- UPC: 785901557548
- PPN: SCH-HC3273DB9
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$436.28/ EA
Description

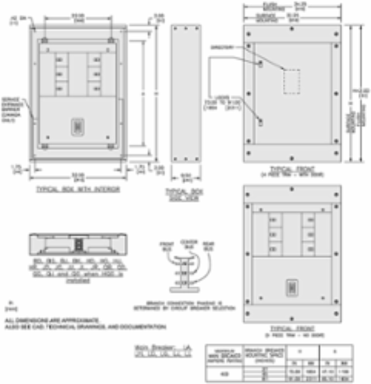

Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. The following are suitable for use as service entrance equipment such as all main circuit breaker panelboards. I-Line circuit breaker panelboards are available as 400–1200 A main lugs only and 100–1200 A main circuit breakers. I-Line circuit breaker panelboards are designed, manufactured, and tested to comply to UL, CSA, NFPA, NEMA & W-P standards. This I-Line, panelboard enclosure has a rated current of 600-800A. This enclosure has a NEMA 1 Degree of protection rating. Dimensions for this enclosure are 1854 mm, (H),813 mm (W),241 mm(D) and weighs 54.54 kg. This product complys to UL & CSA standards.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407017EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 73 in
- Depth
- 9.5 in
- Enclosure Nominal Depth
- 241 mm || 210 mm
- Enclosure Nominal Width
- 813 mm
[In] Rated Current600 A || 800 A
Enclosure Nominal Height1854 mm
Net Weight54.54 kg
Specifications
- Range Of Product
- I-Line
- Device Application
- panelboard
Product Or Component Typeenclosure
Device Short NameHCM
Environment
- Nema Degree Of Protection
- NEMA 1
StandardsUL || CSA
