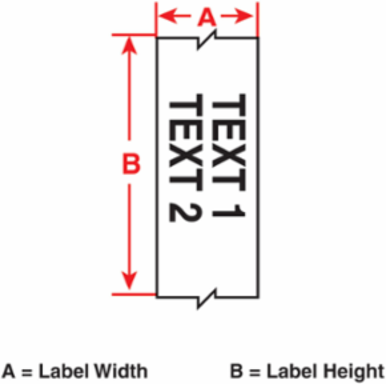

Brady LSZH-C-1000-WT PermaSleeve Wire Marking Sleeves, 1 Inch Dia x 50 Feet L, Low Smoke, Zero Halogen
- MPN: LSZH-C-1000-WT
- UPC: 754473941888
- PPN: BRD-LSZH-C-1000-WT
- UNSPSC: 55121612
CAD
$649.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer printing and is ideal for use in wire identification.
Features
- Suitable for use in applications that require low smoke, halogen free, flame retardant markers
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Shrink Ratio
- 2:1
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
- SAP B-Number
- B-7641
- Diameter as Supplied (mm/cm/m)
- 25.4 mm
- Dimensions (Metric)
- 42.2 mm H
- Height (in/ft/yd)
- 1.66 in
- Inside Core Diameter (in/ft/yd)
- 1.625 in
- Maximum Service Temperature °F
- 221 °F
- Maximum Wire Diameter (mm/cm/m)
- 24.1 mm
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 12.7 mm
- Recovered Diameter (mm/cm/m)
- 12.7 mm
- Recovered Wall Thickness (mm/cm/m)
- 0.91 mm
- Roll Length (mm/cm/m)
- 15.24 m
- Sleeve Size (mm/cm/m)
- 25.4 mm Dia x 15.24 m L
Brand NameBrady®
Enables Industry ComplianceBS6853 (1999) Vehicle Category 1a; EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Method 215K; MIL-STD-202G; RoHS Compliant
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer
Primary Noun, Basic FunctionHeat Shrink Tubing
Printable SidesSingle-Side Printable
Recommended RibbonR6406
Suggested Ribbon SeriesR6000 Halogen Free; R6600
Brady Material NumberB-7641
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Self-Extinguishing; Smear-Resistant
Diameter as Supplied (in/ft/yd)1 in
Dimensions1.66 in H
Dimensions 21.66 in H
Height (mm/cm/m)42.2 mm
Maximum Service Temperature °C105 °C
Maximum Wire Diameter (in/ft/yd)0.95 in
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.5 in
Recovered Diameter (in/ft/yd)0.5 in
Recovered Wall Thickness (in/ft/yd)0.036 in
Roll Length (in/ft/yd)50 ft
Sleeve Size (in/ft/yd)1 in Dia x 50 ft L
Wire Diameter Range0.5 in to 0.95 in
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
