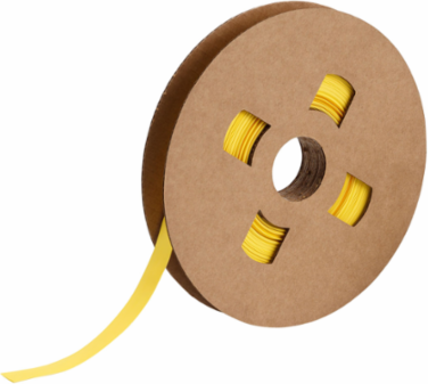

Brady LSZH-C-500-YL PermaSleeve Low Smoke Zero Halogen Wire Marking Sleeves, 0.5" Dia x 50' L
- MPN: LSZH-C-500-YL
- UPC: 754473579517
- PPN: BRD-LSZH-C-500-YL
- UNSPSC: 55121612
CAD
$265.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The B-7641 Heat Shrink Sleeve from Brady® is a low smoke, halogen free identification material used for wire and cable identification.
Features
- Made of halogen-free, flexible flame-retardant, heat-shrinkable polyolefin tubing, offering fire safety properties and minimal smoke emission
- Compatible with the most stringent requirements in the market today to enhance fire safety needs
- 2:1 heat-shrink ratio
- Use with thermal transfer printers and Brady's R6000 series halogen-free ribbon
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- For Use with Printer
- BBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer
- Primary Noun, Basic Function
- Heat Shrink Tubing
- Printable Sides
- Single-Side Printable
- Recommended Ribbon
- R6406
- Suggested Ribbon Series
- R6000 Halogen Free; R6600
- Brady Material Number
- B-7641
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Self-Extinguishing; Smear-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.5 in
- Dimensions
- 0.851 in H
- Dimensions 2
- 0.851 in H
- Height (mm/cm/m)
- 21.6 mm
- Maximum Service Temperature °C
- 105 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.45 in
- Maximum Wire Gauge
- 1 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 6.4 mm
- Recovered Diameter (in/ft/yd)
- 0.25 in
- Recovered Wall Thickness (in/ft/yd)
- 0.028 in
- Roll Length (in/ft/yd)
- 50 ft
- Sleeve Size (in/ft/yd)
- 0.5 in Dia x 50 ft L
- Wire Diameter Range
- 0.25 in to 0.45 in
Brand NameBrady®
FinishMatte
Label/Media FormatRoll
Print TechnologyThermal Transfer
Printer and Label ApplicationsWire & Cable
Shrink Ratio2:1
Trade NamePermaSleeve®
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-NumberB-7641
Diameter as Supplied (mm/cm/m)12.7 mm
Dimensions (Metric)21.6 mm H
Height (in/ft/yd)0.851 in
Inside Core Diameter (in/ft/yd)1.625 in
Maximum Service Temperature °F221 °F
Maximum Wire Diameter (mm/cm/m)11.4 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.25 in
Minimum Wire Gauge6 AWG
Recovered Diameter (mm/cm/m)6.4 mm
Recovered Wall Thickness (mm/cm/m)0.71 mm
Roll Length (mm/cm/m)15.24 m
Sleeve Size (mm/cm/m)12.7 mm Dia x 15.24 m L
Wire Gauge Range6 AWG to 1 AWG
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- DOT Regulated Product
- No = not regulated by DOT
Contains CA PROP 65 SubstanceNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
