Braking Resistor 10 Ohm 1.1 kW IP20 180 mm x 190 mm x 640 mm
Schneider Electric

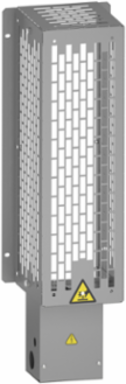

Schneider Electric VW3A7734 Braking Resistor 10 Ohm 1.1 kW IP20 180 mm x 190 mm x 640 mm

  • MPN: VW3A7734
  • PPN: SCH-VW3A7734
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $804.40

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This braking resistor from Schneider Electric is designed to enhance the performance of your automation and control systems. With a resistance of 10 Ohm and a power rating of 1.1 kW, it effectively manages the energy generated during braking, ensuring smooth and controlled operation of motors and drives. Its compact form, measuring 180 mm x 190 mm x 640 mm, allows for easy integration into various setups while maintaining an IP20 rating for protection against solid objects. Ideal for applications that require reliable stopping power, this component plays a critical role in improving efficiency and safety in motor control environments.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, Spain, France, Sweden, United States
    Depth180 mm

    Important Information Attributes

    Duty Cycle
    light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cyclelight cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle, medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle, medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    No
    Product Kit Identifier
    N
    Ohmic Value
    10 Ohm
    Product Or Component Type
    braking resistor
    Range Of Product
    Altivar
    Sustainable Packaging
    No
    Width Nominal
    190 mm
    Accessory / Separate Part Category
    protection accessories
    Package Weight(Lbs)
    5.095 kg
    Warranty (In Months)
    18
    Electrical Connectionterminal <= 35 mm² / 3 AWG drive, terminal <= 4 mm² / 10 AWG temperature control switch
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1851
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Average Power Available0.96 kW 50 °C
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection Typethermal protection via drive or temperature control switch 120 °C
    ReturnabilityYes
    Height Nominal640 mm
    [Ue] Rated Operational Voltage24 V DC250 V AC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8533290000

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-70 °C, -25-70 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Ambient Air Temperature For Operation
    0-50 °C
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    No
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Product Compatibilityvariable speed drive ATV950 wall mount 45 kW 380...480 V light cyclevariable speed drive ATV340 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 45 kW 380...480 V light cyclevariable speed drive ATV930 wall mount 11 kW 200...240 V light cycle, variable speed drive ATV950 wall mount 37 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 11 kW 200...240 V medium cyclevariable speed drive ATV340 30 kW 380...480 V light cyclevariable speed drive ATV320 7.5 kW 200...240 V, variable speed drive ATV930 45 kW 500...690 V light cycle, variable speed drive ATV930 55 kW 500...690 V light cyclevariable speed drive ATV930 60 hp 600 V light cycle, variable speed drive ATV930 75 hp 600 V light cycle
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes

    General Attributes

    Product Or Component Type
    braking resistor
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025
