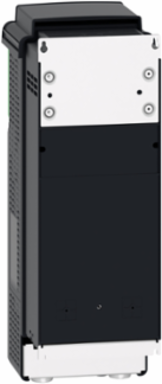

Altivar Process Variable Speed Drive, 11kW, 200-240V, IP21

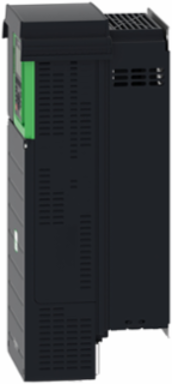

Altivar Process Variable Speed Drive, 11kW, 200-240V, IP21

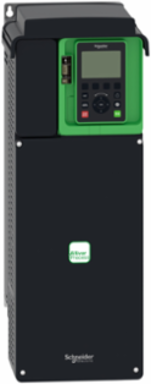

Altivar Process Variable Speed Drive, 11kW, 200-240V, IP21

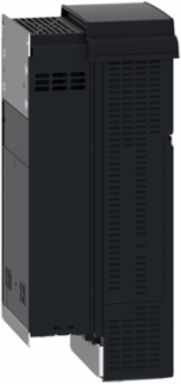

Altivar Process Variable Speed Drive, 11kW, 200-240V, IP21

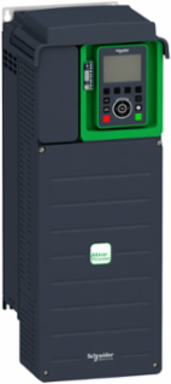

Altivar Process Variable Speed Drive, 11kW, 200-240V, IP21
Schneider Electric

Schneider Electric ATV930D11M3 Altivar Process Variable Speed Drive, 11kW, 200-240V, IP21

  • MPN: ATV930D11M3
  • PPN: SCH-ATV930D11M3
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $3535.63

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Altivar Process ATV900 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It is suitable for motors with power rating up to 11kW/15HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 7.5kW/10HP for applications requiring significant overload (up to 150%). It works at a rated supply voltage from 200Vac to 240Vac. This variable speed / frequency drive (VSD / VFD) is specifically designed for industrial processes. In the following market segments: oil and gas, mining, minerals and metals, food and beverage water and wastewater. It offers high motor performance on any motor and total control of any kind of coupling in master/slave applications. Network services help ensure operation continuity even in case of connection breakdown. Web server and data logging help reduce downtime through fast troubleshooting and preventive maintenance. Its advanced connectivity, including EtherNet/IP and Modbus TCP, allows deep integration into automation architectures.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    India, Mexico, United States
    Depth235 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus TCP, Modbus serial, EtherNet/IP

    Complementary Attributes

    Maximum Switching Current
    relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC, relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V AC, relay output R1 resistive, cos phi = 1 3 A 30 V DC, relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
    Maximum Transient Current
    56.2 A 60 s normal duty), 49.1 A 60 s heavy duty)
    Maximum Associated Fuse Rating
    63.0 A
    Maximum Output Frequency
    599 Hz
    Minimum Switching Current
    relay output R1, R2, R3 5 mA 24 V DC
    Maximum Thdi<48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
    Brake Chopper Integratedtrue
    Maximum Input Current Per Phase39.3 A
    Maximum Output Voltage240.0 V

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profile
    optimized torque mode, variable torque standard, constant torque standard
    Data Format
    8 bits, configurable odd, even or no parity Modbus serial, 8 bits, configurable odd, even or no parity
    Emc Filter
    integrated, with EMC plate option
    Line Current
    39.3 A 200 V normal duty), 27.2 A 200 V heavy duty), 32.9 A 240 V normal duty), 23.1 A 240 V heavy duty)
    Motor Power Kw
    11.0 kW normal duty, 7.5 kW heavy duty
    Noise Level
    59.5 dB 86/188/EEC, 59.5 dB
    Power Dissipation In W
    natural convection 62 W 200 V 4 kHz, forced convection 452 W 200 V 4 kHz
    Protection Type
    safe torque off drive, motor phase break drivethermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Switching Frequency
    2...16 kHz adjustable, 4...16 kHz with derating factor
    Transmission Rate
    10/100 Mbit/s Ethernet IP/Modbus TCP, 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s
    Certificate Agency
    TÜV, CSA, UL
    [Us] Rated Supply Voltage
    200...240 V, 200...240 V - 15...10 %
    Environmental Class (During Storage)
    class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]
    2.980964311283438, 3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    6 kg CO2 eq., 6.081659625697771
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    6 327 kg CO2 eq., 6326.732036450503
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Device Type
    Variable speed drive - VSD Compacts
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2510025EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1922
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Dangerous Goods Code
    LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier
    2
    Function Option
    Advanced
    Market Segmentation
    Industrial
    1 Phase Low Current Possible
    false
    Application In Domestic And Commercial Area Permitted
    false
    Base Load Current At High Overload
    32.7 A
    Braking To Standstill
    by DC injection
    Design Of Frequency Changer
    U converter
    Exchange Mode
    half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
    Isolation
    between power and control terminals
    Maximum Associated Fuse Rating
    63.0 A
    Method Of Access
    slave Modbus TCP
    Network Frequency
    50-60 Hz
    Number Of Hw Interfaces Industrial Ethernet
    2
    Number Of Output Phases
    3
    Operating Position
    vertical +/- 10 degree
    Overvoltage Category
    III
    Power Loss Per Device Current Dependent
    618.0 W
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Specific Application
    process for industrial
    Quantity Per Set
    1
    Refresh Time
    relay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance
    10 %
    Returnability
    Yes
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    true
    Supporting Protocol For Devicenet Safety
    false
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    false
    Supporting Protocol For Profinet Cba
    true
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Sustainable Packaging
    Yes
    Transmission Frame
    RTU
    Volume Of Cooling Air
    215 m3/h
    With Safety Function Safe Programmable Logic
    false
    Pep Code
    ENVPEP2510025EN
    Pep Verification Date
    2025-11-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    Height Nominal
    545.9 mm
    Emc Limit Value (Complied)
    false
    Maximum Acceleration Under Shock Load (During Storage)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)
    class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highway
    false
    Supporting Protocol For Interbus-safety
    false
    With Safety Function Safe Brake Management (Sbc/Sbt)
    true
    With Safety Function Safe Operating Stop (Sos)
    false
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    With Safety Function Safely Limited Speed (Sls)
    true
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type IdsEU, OM, OM8, SI
    Apparent Power13.7 kVA 240 V normal duty), 9.6 kVA 240 V heavy duty)
    Connector Type2 RJ45, 1 RJ45
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Encoder Protocol1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
    Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output
    Motor Slip Compensationnot available in permanent magnet motor law, can be suppressed, adjustable, automatic whatever the load
    Number Of Addresses1-247, 1-247 Modbus serial
    Product Destinationsynchronous motors, asynchronous motors
    Sampling Duration2 ms +/- 0.5 ms DI1...DI8) - discrete input, 5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms AQ1, AQ2) - analog output
    Synchronous Motor Control Profilepermanent magnet motor, synchronous reluctance motor
    Type Of Polarizationno impedance, no impedance Modbus serial
    [Ue] Rated Operational Voltage200...240 V 11.0 kW 15 hp normal duty, 200...240 V 7.5 kW 10 hp heavy duty
    Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]20.00287873542342, 20 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]179 kg CO2 eq., 178.94277962852502
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category4
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    4 Quadrant Operation Possibletrue
    Assembly Styleenclosed
    Base Load Current At Low Overload46.8 A
    Computer Porttrue
    Device ApplicationIndustrial Application
    Housing Materialplastic
    MarkingCE
    Maximum Input Current Per Phase39.3 A
    Mounting Modewall mount
    Nominal Switching Frequency4 kHz
    Number Of Hw Interfaces Serial Rs4851
    Operating Element Presenttrue
    Optical Interface Presentfalse
    Phase3 phase
    Power Loss Static Current Independent22.0 W
    Product Or Component Typevariable speed drive
    Prospective Line Isc50 kA
    Range Of ProductAltivar Process ATV900
    Regulation Loopadjustable PID regulator
    Relative Symmetric Network Frequency Tolerance5 %
    Software Versionv6.2.5-6
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Devicenetfalse
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibustrue
    Supporting Protocol For Profinet Iotrue
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Total Lifecycle Carbon Footprint6 535 kg CO2 eq.
    UpdatabilityUpgradeable through digital modules
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permittedtrue
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 22 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in &quot;standby&quot; phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the &quot;Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1&quot;.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; China, CN
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential, In %80
    Width Nominal211 mm
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Workfalse
    Supporting Protocol For Ethernet/Iptrue
    Supporting Protocol For Tcp/Iptrue
    With Safety Function Safe Direction (Sdi)false
    With Safety Function Safe Position (Sp)false
    With Safety Function Safe Stop 1 (Ss1)true
    With Safety Function Safely Limited Position (Slp)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Package Weight(Lbs)17.059 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating), 50-60 °C (with derating factor)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    6534.740318751433
    Environmental Disclosure
    ENVPEP2510025EN
    Ip Degree Of Protection
    IP21
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2510025EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2510025EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2025-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV900
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
    Discrete Output Type
    logic output DQ+ 0-1 kHz <= 30 V DC 100 mA, programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA
    Analogue Output Number
    2
    Maximum Output Frequency
    599 Hz
    Nominal Output Current
    46.8 A
    Relay Output Number
    3
    Continuous Output Current46.8 A 4 kHz normal duty, 32.7 A 4 kHz heavy duty
    Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles
    Discrete Output Number2
    Maximum Output Voltage240.0 V
    Nominal Output Power11.0 W

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated, with EMC plate option

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
    Input Compatibility
    DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Logic
    16 preset speeds
    Number Of Input Phases
    3
    Discrete Input TypeDI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
    Analogue Input Number3
    Discrete Input Number10

    Batteries & Runtime Attributes

    Removable Battery
    Yes

    Similar Products

    Loading carousel layout...

    CAD$3535.63/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
