Schneider Electric

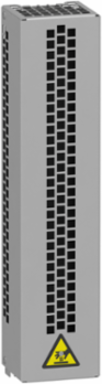

Schneider Electric VW3A7740 braking resistor, Altivar, 100Ohms, 0.26kW, IP20

braking resistor, Altivar, 100Ohms, 0.26kW, IP20
  • MPN: VW3A7740
  • PPN: SCH-VW3A7740

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$227.23/ EA

    Description

    braking resistor, Altivar, 100Ohms, 0.26kW, IP20

    Specifications

    Offer Sustainability

    China Rohs Regulation
    X
    Mercury Free
    Yes
    Eu Rohs Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of Svhc
    Yes
    Rohs Exemption InformationYes
    Toxic Heavy Metal FreeYes
    Reach RegulationFree of Substances of Very High Concern above the threshold

    Complementary

    Height
    465 mm
    Protection Type
    thermal protection via drive
    Width
    105 mm
    Average Power Available
    0.26 kW 50 °C
    Electrical Connection
    terminal <= 10 mm² / AWG 8 drive
    Product Compatibilityvariable speed drive ATV930 wall mount 2.2 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 3 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 4 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 2.2 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 3 kW 380...480 V medium cycle || variable speed drive ATV950 wall mount 4 kW 380...480 V medium cycle || variable speed drive ATV930 wall mount 0.75 kW 200...240 V severe cycle || variable speed drive ATV340 1.5 kW 380...480 V medium cycle || variable speed drive ATV340 2.2 kW 380...480 V medium cycle || variable speed drive ATV340 3 kW 380...480 V medium cycle || variable speed drive ATV930 4 kW 500...690 V medium cycle || variable speed drive ATV930 5.5 kW 500...690 V medium cycle || variable speed drive ATV930 5 hp 600 V medium cycle || variable speed drive ATV930 7.5 hp 600 V medium cycle
    Duty Cyclesevere cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle || medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle || medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle || severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle
    Depth100 mm
    Net Weight2.5 kg

    Specifications

    Ohmic Value
    100 Ohm
    Product Or Component Type
    braking resistor
    Range CompatibilityAltivar Process ATV900 || Altivar Machine ATV340

    Environment

    Ambient Air Temperature For Operation
    0-50 °C
    Ip Degree Of Protection
    IP20
    Ambient Air Temperature For Storage-25-70 °C
