Schneider Electric VW3A7703 Braking Resistor 28 Ohm 200W IP20 for Altivar Drives
- MPN: VW3A7703
- PPN: SCH-VW3A7703
CAD
$415.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

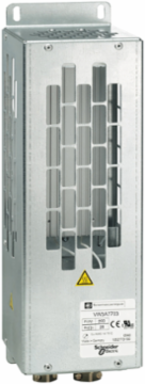

This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 28Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 3.5kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Documentation & Downloads
Specifications
Key Specifications
- Ohmic Value
- 28 Ohm
- Product Compatibility
- ATV312HD11N4 || ATV312HD11S6 || ATV312HD15N4 || ATV312HD15S6 || ATV312HU40M3 || ATV31CD11N4 || ATV31CD15N4 || ATV32HD11N4 || ATV32HD15N4 || ATV61HD18Y || ATV61HD22Y || ATV61HU30M3 || ATV61HU40M3 || ATV61WD15N4 || ATV61WD15N4C || ATV61WD18N4 || ATV61WD18N4C || ATV71HD11N4 || ATV71HD15N4 || ATV71HD15Y || ATV71HD18Y || ATV71HU30M3 || ATV71HU40M3 || ATV71PD11N4Z || ATV71WD11N4 || ATV71WD15N4 || variable speed drive ATV310 11 kW
- [Ue] Rated Operational Voltage
- 24 V DC 0.1 A || 250 V AC 1 A
Range Of ProductAltivar
Range CompatibilityAltivar 61 || Altivar 312 || Altivar 32 || Altivar 312 Solar || Altivar 31C
Complementary
- Height
- 393 mm
- Width
- 140 mm
- Average Power Available
- 200 W 50 °C || 231 W 40 °C
- Electrical Connection
- terminal <= 1.5 mm² / AWG 16 temperature control switch || terminal <= 4 mm² / AWG 28 drive
Protection Typethermal protection via drive or temperature control switch 120 °C
Depth120 mm
Net Weight3.5 kg
Contact Resistance60 µOhm
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ip Degree Of Protection
- IP20
Ambient Air Temperature For Storage-25-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
