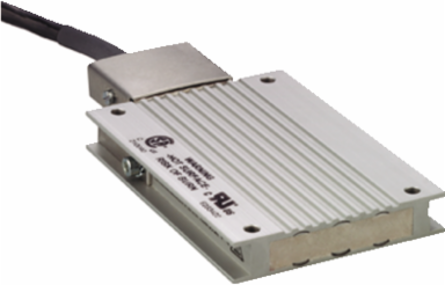

Telemecanique Sensors VW3A7608R07 100 Ohm Braking Resistor 100 W, IP65, 0.75 m Cable
- MPN: VW3A7608R07
- PPN: SCH-VW3A7608R07
CAD
$410.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This braking resistor is an option for variable speed drives of Altivar range and Lexium motion servio drives. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 100Ohms and a cable length of 0.75m. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP65. It weighs 0.41kg. This resistor is designed to be mounted on the outside of the enclosure.
Documentation & Downloads
Specifications
Key Specifications
- Ohmic Value
- 100 Ohm
- Product Compatibility
- ATV32H018M2 || ATV32H037M2 || ATV32H037N4 || ATV32H055M2 || ATV32H055N4 || ATV32H075M2 || ATV32H075N4 || ATV32HU11N4 || ATV32HU15N4 || ATV32HU22N4 || variable speed drive ATV320 0.18 kW, 200...240 V, single phase || variable speed drive ATV320 0.37 kW, 200...240 V, single phase || variable speed drive ATV320 0.55 kW, 200...240 V, single phase || variable speed drive ATV320 0.75 kW, 200...240 V, single phase || variable speed drive ATV320 0.37 kW, 380...500 V, three phase || variable speed drive ATV320 0.55 kW, 380...500 V, three phase || variable speed drive ATV320 0.75 kW, 380...500 V, three phase || variable speed drive ATV320 1.1 kW, 380...500 V, three phase || variable speed drive ATV320 1.5 kW, 380...500 V, three phase || variable speed drive ATV320 2.2 kW, 380...500 V, three phase || variable speed drive ATV320 0.75 kW, 525...600 V, three phase || variable speed drive ATV320 1.5 kW, 525...600 V, three phase || variable speed drive ATV320 2.2 kW, 525...600 V, three phase || variable speed drive ATV310L 0.75 kW || variable speed drive ATV310L 1.5 kW || variable speed drive ATV310L 2.2 kW || variable speed drive ATV310L 3.0 kW || variable speed drive ATV310L 4.0 kW || variable speed drive ATV310L 5.5 kW || motion servo drive LXM16D 0.1 kW, 200...230 V, single phase || motion servo drive LXM16D 0.2 kW, 200...230 V, single phase || motion servo drive LXM16D 0.4 kW, 200...230 V, single phase || motion servo drive LXM16D 0.75 kW, 200...230 V, single phase || motion servo drive LXM16D 1 kW, 200...230 V, single phase || motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
- Product Or Component Type
- braking resistor
Range Of ProductAltivar || Lexium
Range CompatibilityAltivar 32 || Lexium 15 || Lexium 32 || Lexium 32i || Altivar Machine ATV320 || Lexium 52 || Easy Altivar 310L || Easy Lexium 16
Complementary
- Continuous Power
- 100 W
- Protection Type
- thermal protection via the servo drive
- Average Power Available
- 25 W 50 °C
Cable Length0.75 m
Energy Peak2700 J 480 V || 3000 J 400 V || 4500 J 230 V || 4400 J 115 V
Net Weight0.41 kg
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ip Degree Of Protection
- IP65
Ambient Air Temperature For Storage-25-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
