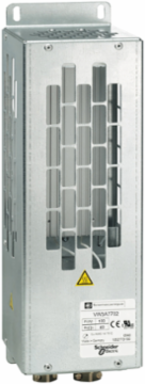

Schneider Electric VW3A7702 Altivar Braking Resistor, 100W, 60 Ohm, IP20, 2.4 kg
- MPN: VW3A7702
- PPN: SCH-VW3A7702
CAD
$319.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This braking resistor is an option for variable speed drives of Altivar range. It dissipates the braking energy, and enables maximum transient braking torque. It has an Ohmic value of 60Ohms at 20°C and its protection index is IP20. It is compatible with Altivar 312, Altivar 31, Altivar 32, Altivar 320, Altivar 61, Altivar 71 and Altivar easy 310. Its protection index is IP20. It weighs 2.4kg. This resistor is designed to be mounted on the outside of the enclosure, but should not inhibit natural cooling, air inlets and outlets must not be obstructed in any way.
Documentation & Downloads
Specifications
Key Specifications
| Ohmic Value | 60 Ohm |
|---|---|
| Product Compatibility | ATV31CU22M2 || ATV12HU22M2 || ATV12HU22M3 || ATV12PU22M3 || ATV312HU22M2 || ATV312HU22M3 || ATV312HU30M3 || ATV312HU55N4 || ATV312HU55S6 || ATV312HU75N4 || ATV312HU75S6 || ATV31CU55N4 || ATV31CU75N4 || ATV32HU22M2 || ATV32HU55N4 || ATV32HU75N4 || ATV61HD11Y || ATV61HD15Y || ATV61HU15M3 || ATV61HU22M3 || ATV61HU22S6X || ATV61HU30S6X || ATV61HU40S6X || ATV61HU55N4 || ATV61HU55S6X || ATV61HU75N4 || ATV61HU75S6X || ATV61WD11N4 || ATV61WD11N4C || ATV61WU75N4 || ATV61WU75N4C || ATV71HD11Y || ATV71HU15M3 || ATV71HU15S6X || ATV71HU22M3 || ATV71HU22S6X || ATV71HU30S6X || ATV71HU40S6X || ATV71HU55N4 || ATV71HU55S6X || ATV71HU75N4 || ATV71HU75S6X || ATV71HU75Y || ATV71PU55N4Z || ATV71PU75N4Z || ATV71WU55N4 || ATV71WU75N4 || variable speed drive ATV310 5.5 kW || variable speed drive ATV310 7.5 kW |
| [Ue] Rated Operational Voltage | 24 V DC 0.1 A || 250 V AC 1 A |
| Range Of Product | Altivar |
|---|---|
| Range Compatibility | Altivar 31C || Altivar 312 Solar || Altivar 32 || Altivar 61 || Altivar 312 |
Complementary
| Height | 293 mm |
|---|---|
| Width | 95 mm |
| Average Power Available | 100 W 50 °C || 115 W 40 °C |
| Electrical Connection | terminal <= 1.5 mm² / AWG 16 temperature control switch || terminal <= 4 mm² / AWG 28 drive |
| Protection Type | thermal protection via drive or temperature control switch 120 °C |
|---|---|
| Depth | 95 mm |
| Net Weight | 2.4 kg |
| Contact Resistance | 60 µOhm |
Environment
| Ambient Air Temperature For Operation | 0-50 °C |
|---|---|
| Ip Degree Of Protection | IP20 |
| Ambient Air Temperature For Storage | -25-70 °C |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | X |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Free Of Svhc | Yes |
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
