Schneider Electric LXMMCABR120S100 braking resistor, Lexium MC12
Schneider Electric LXMMCABR120S100 braking resistor, Lexium MC12
- MPN: LXMMCABR120S100
- PPN: SCH-LXMMCABR120S100
- UNSPSC: 32121603
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$391.85/ EA
Description

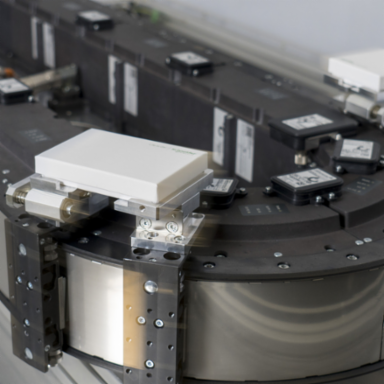

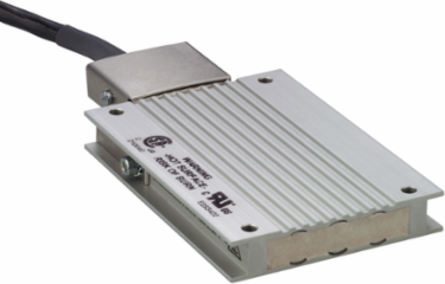

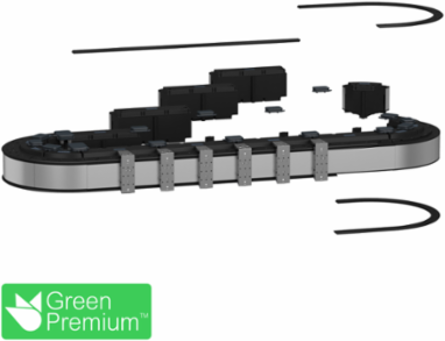

The braking resistor is part of Lexium MC12 multi carrier range, a modular transportation system. The external braking resistor is required for applications in which the internal resistor is not able to absorb the braking energy. This braking resistor allows the carrier to be deccelerated at a highter rate, by dissipating the braking energy and enabling maximum transient braking force. It has an ohmic value of 3Ohm. It has a continuous power of 100W. Its IP level is 65. It weighs 0.6kg. This offer is certified by CE, UKCA, RCM, TÜV Zertifizierung, China RoHS, and WEEE. It has a connection cable of length 2meters. This braking resistor should be connected to the connection module. Next generation transport system with unprecedented simplicity in installation and commissioning. Lexium MC12 multi carrier is an innovative transport system for moving, positioning or grouping objects in machines for discrete processes.
Features
- Increase machine performance and flexibility
- Speed up engineering and improve design quality
- Simplify installation & commissioning
- Increase OEE of machines
Specifications
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Without Single Use PlasticYes
General Attributes
- Product Or Component Type
- braking resistor
Range Of ProductLexium MC12 multi carrier
Important Information Attributes
- Persona Type Ids
- EU, OM
- Local Data Status
- Publishable
- Serviceability
- No
- Legacy WEEE Scope
- Out
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Package Weight Lbs
- 1.47 kg
- Product Or Component Type
- braking resistor
- Range Of Product
- Lexium MC12 multi carrier
- Sustainable Packaging
- Yes
- Medium Desc
- braking resistor, Lexium MC12
- Product Kit Identifier
- N
- Accessory Separate Part Category3
- electrical accessory
Persona Type NamesEnd User, Original Equipment Manufacturer
Local Publishable Date2026-01-12
TraceabilityNo
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
Without Single Use PlasticYes
Return IndicatorN
Function OptionAdvanced
Market SegmentationIndustrial
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Set1 piece
ReturnabilityNo
Accessory Separate Part Category2electrical accessory
Stocking FlagY
Global Commercial StatusCommercialised
