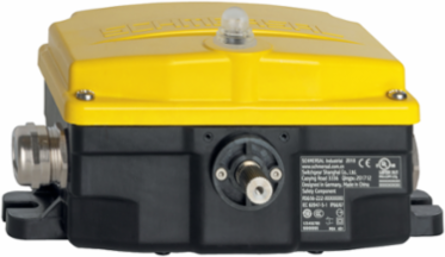

Schmersal 153031642 Heavy-Duty Position Switch with Metal Enclosure, IP66/IP67 Protection, 2 Safety Contacts
- MPN: 153031642
- PPN: SCM-153031642
CAD
$1111.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy-Duty Position Switch with Metal Enclosure, IP66/IP67 Protection, 2 Safety Contacts
Features
- Platform concept with different function units
- Metal enclosure
- Wide range of alternative actuators
- Protection class IP66, IP67
- Switching point setting
- Symmetry thanks to toothed, centrally located shaft
- Central connection terminal
Documentation & Downloads
Specifications
Electrical data
- Thermal test current
- 6 A
- Utilisation category AC-15
- 3 A
- Utilisation category DC-13
- 3 A
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC
Material of the contacts, electricalSilver
Ambient conditions - Insulation values
- Rated insulation voltage U
- 300 V
- Degree of pollution
- 3
Rated impulse withstand voltage U4 kV
Safety classification - Safety outputs
- B
- 2,000,000 Operations
General data - Features
- Indicator lamp
- Yes
- Number of safety contacts
- 2
Number of auxiliary contacts2
Number of signal lamps1
General data
- Standards
- EN 620 | EN IEC 60947-5-1
- Material of the housing cover
- Grey cast iron, painted
Enclosure materialGrey cast iron, painted
Gross weight6,070 g
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67 | IP66
- Protection class
- I
Ambient temperature-25 ... +60 °C
Mechanical data - Connection technique
- Cable entry
- 2 x M25 x 1.5
- Cable section, maximum
- 2.5 mm², flexible
Cable section, minimum0.5 mm², flexible
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Positionierschritte für den Betätiger10 °
Approvals - Standards
- Certificates
- TÜV | cULus | CCC
Status indication
- Colour of the indicator lamp
- Red
Note (LED switching conditions display)Supply voltage UB: 115 VAC
