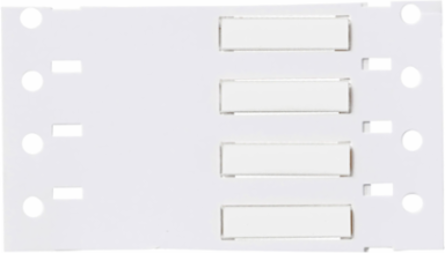

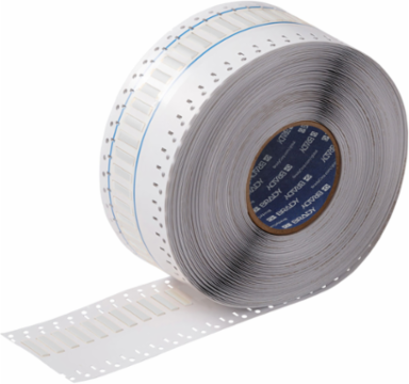

Brady SA-2LSZH-125-1-WT BSP45 Low Smoke Zero Halogen Wire Marking Sleeves 0.125 Inch Dia x 1 Inch W

MPN: SA-2LSZH-125-1-WT
UPC: 754473579074
PPN: BRD-SA-2LSZH-125-1-WT
UNSPSC: 55121612

$1339.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

PermaSleeve Heat Shrink Tubing is engineered for thermal transfer printing and is ideal for use in wire identification.

Features

Suitable for use in applications that require low smoke, halogen free, flame retardant markers

Documentation & Downloads

Specifications

Key Specifications

Applications	Wire and Cable Labeling
Color	White
Finish	Matte
Label/Media Format	Roll
Print Technology	Thermal Transfer
Printer and Label Applications	Wire & Cable
Printer Compatibility (Print)	BBP72
Quantity per Row	1
Ribbon Series	R6600
Shrink Ratio	2:1
Suggested Ribbon Series	R6000 Halogen Free; R6600
Total Quantity	2500
Brady Material Number	B-7641
Material	Heat-shrink Polyolefin
Resistance Properties	Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)	76.20 mm
Diameter as Supplied (mm/cm/m)	3.2 mm
Dimensions (Metric)	25.40 mm W x 6.00 mm H
Height (in/ft/yd)	0.235 in
Maximum Service Temperature °C	105 °C
Maximum Wire Diameter (in/ft/yd)	0.11 in
Maximum Wire Gauge	16 AWG
Minimum Service Temperature °F	-67 °F
Minimum Wire Diameter (mm/cm/m)	1.57 mm
Recovered Diameter (in/ft/yd)	0.062 in
Recovered Wall Thickness (in/ft/yd)	0.025 in
Roll Width (in/ft/yd)	1 in
Size - Width (mm)	25.40 mm
Sleeve Size (mm/cm/m)	3.2 mm Dia x 25.4 mm W
Sleeve Width (mm/cm/m)	25.4 mm
Web Width (in/ft/yd)	3.5 in
Wire Diameter Range	0.062 in to 0.11 in

Brand Name	Brady®
Enables Industry Compliance	ASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; BS6853 (1999) Vehicle Category 1a; European Standard EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Halogen Free (DIN VDE 0472 Part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531

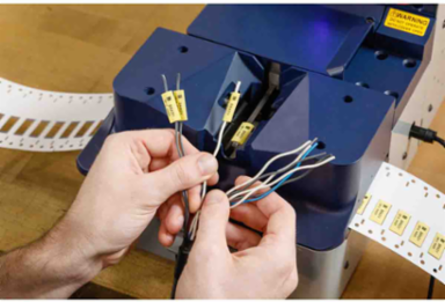

For Use with Printer	BradyPrinter i7100; BSP™45 Wire & Cable Sleeve Applicator; THT 3" Core Printer
Primary Noun, Basic Function	Sleeve
Printable Sides	Double-Side Printable
Printer Compatibility	BP-PR 300 PLUS; BBP72
Quantity per Roll	2500
Recommended Ribbon	R6006
Shape	Rectangle
Sleeve Slits	No
Total Qty per Pack	2500 Sleeve(s) / Roll
Trade Name	BSP™45
Label Properties	Heat Shrink Sleeves
Material Properties	Flame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-Number	B-7641
Diameter as Supplied (in/ft/yd)	0.125 in
Dimensions	0.235 in H
Dimensions 2	0.235 in H
Height (mm/cm/m)	6.00 mm
Maximum Service Temperature °F	221 °F
Maximum Wire Diameter (mm/cm/m)	2.79 mm
Minimum Service Temperature °C	-55 °C
Minimum Wire Diameter (in/ft/yd)	0.062 in
Minimum Wire Gauge	20 AWG
Recovered Diameter (mm/cm/m)	1.6 mm
Recovered Wall Thickness (mm/cm/m)	0.6 mm
Roll Width (mm/cm/m)	25.4 mm
Sleeve Size (in/ft/yd)	0.125 in Dia x 1 in W
Sleeve Width (in/ft/yd)	1 in
Vertical Repeat	0.5 in
Web Width (mm/cm/m)	88.9 mm
Wire Gauge Range	20 AWG to 16 AWG

Regulatory Information

Contains CA PROP 65 Substance	No - Does not contain
EU RoHS Compliance	Pass 2011/65/EU(Pass 2015/863)
SDS Safety Data Sheet required	No = MSDS/SDS is not required
