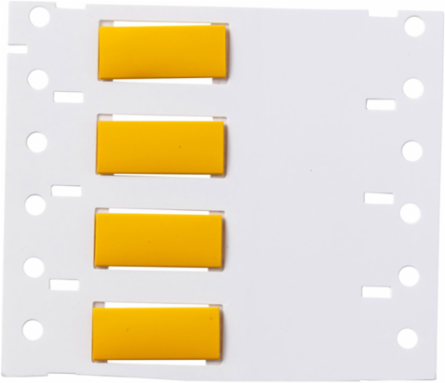

Brady SA-2LSZH-250-1-YL BSP45 PermaSleeve Low Smoke Zero Halogen Sleeves 0.25 Inch Dia x 1 Inch W, Yellow
Brady SA-2LSZH-250-1-YL BSP45 PermaSleeve Low Smoke Zero Halogen Sleeves 0.25 Inch Dia x 1 Inch W, Yellow
- MPN: SA-2LSZH-250-1-YL
- UPC: 754473579173
- PPN: BRD-SA-2LSZH-250-1-YL
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2471.07/ EA
Description
PermaSleeve Heat Shrink Tubing is engineered for thermal transfer printing and is ideal for use in wire identification.
Features
- Suitable for use in applications that require low smoke, halogen free, flame retardant markers
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format

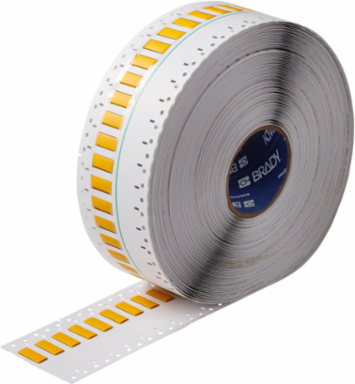

- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP72
- Quantity per Row
- 1
- Ribbon Series
- R6600
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R6000 Halogen Free; R6600
- Total Quantity
- 2500
- Brady Material Number
- B-7641
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 6.4 mm
- Dimensions (Metric)
- 25.40 mm W x 11.15 mm H
- Height (in/ft/yd)
- 0.439 in
- Maximum Service Temperature °C
- 105 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.215 in
- Maximum Wire Gauge
- 8 AWG
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 3.18 mm
- Recovered Diameter (in/ft/yd)
- 0.125 in
- Recovered Wall Thickness (in/ft/yd)
- 0.029 in
- Roll Width (in/ft/yd)
- 1 in
- Size - Width (mm)
- 25.40 mm
- Sleeve Size (mm/cm/m)
- 6.4 mm Dia x 25.4 mm W
- Sleeve Width (mm/cm/m)
- 25.4 mm
- Web Width (in/ft/yd)
- 3.5 in
- Wire Diameter Range
- 0.125 in to 0.215 in
Brand NameBrady®
Enables Industry ComplianceASTM D 257; ASTM D 2671; ASTM D 2671C; ASTM D 570; ASTM D 635; ASTM D 638; ASTM D 792; BS6853 (1999) Vehicle Category 1a; European Standard EN 45545-2, Requirement Set R22/R23, Vehicle Category HL3; Halogen Free (DIN VDE 0472 Part 815); MIL-M-81531; MIL-STD-202; MIL-STD-202G; SAE-AS-81531

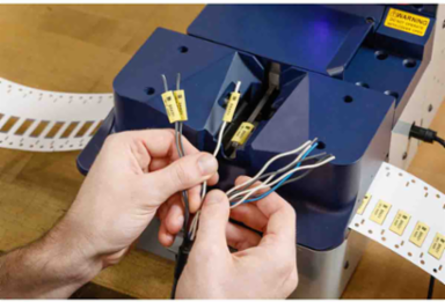

For Use with PrinterBradyPrinter i7100; BSP™45 Wire & Cable Sleeve Applicator; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Printer CompatibilityBP-PR 300 PLUS; BBP72
Quantity per Roll2500
Recommended RibbonR6006
ShapeRectangle
Sleeve SlitsNo
Total Qty per Pack2500 Sleeve(s) / Roll
Trade NameBSP™45
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable; Low-smoke; Zero-halogen
SAP B-NumberB-7641
Diameter as Supplied (in/ft/yd)0.25 in
Dimensions0.439 in H
Dimensions 20.439 in H
Height (mm/cm/m)11.15 mm
Maximum Service Temperature °F221 °F
Maximum Wire Diameter (mm/cm/m)5.46 mm
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.125 in
Minimum Wire Gauge12 AWG
Recovered Diameter (mm/cm/m)3.2 mm
Recovered Wall Thickness (mm/cm/m)0.7 mm
Roll Width (mm/cm/m)25.4 mm
Sleeve Size (in/ft/yd)0.25 in Dia x 1 in W
Sleeve Width (in/ft/yd)1 in
Vertical Repeat0.75 in
Web Width (mm/cm/m)88.9 mm
Wire Gauge Range12 AWG to 8 AWG
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
EU RoHS CompliantYes
