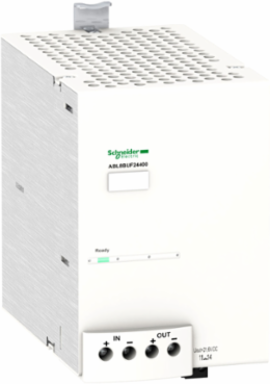

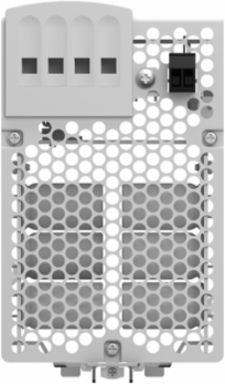

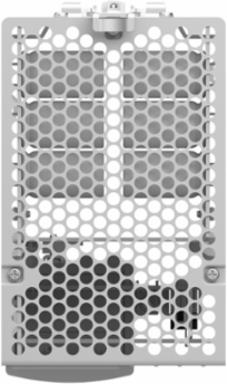

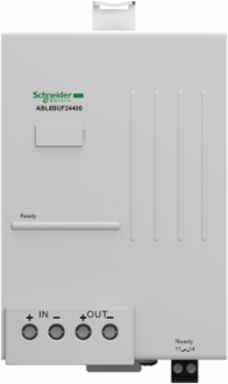

Schneider Electric ABL8BUF24400 Buffer Module 24-28.8V DC 40A, DIN Rail Mount
- MPN: ABL8BUF24400
- PPN: SCH-ABL8BUF24400
CAD
$342.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This ABL8 buffer module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A at 24V DC. This buffer module is designed to provide power during consumption surges or during short network power losses. It provides temporary backup power in case of deep voltage sags and breaks, without the use of batteries. It weighs 1,200kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Documentation & Downloads

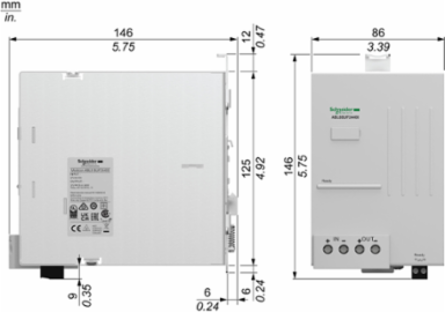

Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Philippines, Singapore, United States
Complementary Attributes
- Maximum Output Current
- 40 A
Maximum Power Dissipation In W15 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Current Consumption
- <= 40.6 A, 0.6 A on load0.1 mA no load, <= 40.6 A
- Environmental Characteristic
- EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-2safety conforming to IEC 60950-1, safety conforming to EN/IEC 61204-3
- Holding Current
- 20 A, 15 A, 4 A, 5 A, 7 A, 6 A, 3 A, 10 A, 2 A, 30 A, 35 A, 40 A, 8 A, 1 A, 25 A
- Local Signalling
- 1 LED (green) for buffer ready, 1 relay for buffer ready
- Certificate Agency
- RCM, EAC
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI121208EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Charging Time
- 25 s
- Holding Solution
- use of buffer modules
- Mtbf Reliability
- 1119603 H at 24 V DC with UTE C80-810 calculation method
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Phaseo
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8532220020
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Dielectric Strength500 V between input and ground, 500 V between output and ground

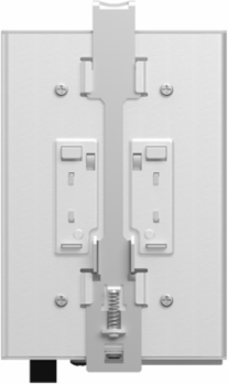

Fixing Modeby clips 35 mm symmetrical DIN rail horizontal, by clips 35 mm symmetrical DIN rail vertical
Holding Time3 s, 4 s, 0.4 s, 1.5 s, 0.3 s, 0., 0.5 s, 6 s, 2 s, 0., 0.6 s, 1 s0.1 s 40 A6 s 0.5 A
Name Of Testelectrostatic discharges IEC 61000-4-2emission IEC 61000-6-3, induced electromagnetic field IEC 61000-4-6 level 3radiated electromagnetic field IEC 61000-4-3 level 3rapid transient IEC 61000-4-4 level 3, surge IEC 61000-4-5 level 2, conducted/radiated emissions EN 55022 Class B, 20 %
Connections - Terminalsfor input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWG, for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWGfor diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² 14 AWG
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Compatibility CodeABL8B
MarkingCE
Overvoltage Categoryclass II conforming to VDE 0106-1
Product Or Component Typebuffer module
ReturnabilityNo
Vibration Resistance2 gn (f= 11.9-150 Hz) conforming to IEC 61131-23.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2
Pep CodeENVPEP1212008EN
Package Weight(Lbs)1.401 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Relative Humidity
- 0-90 % during operation, 0-95 % during storage
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1212008EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI121208EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1212008EN
General Attributes
- Product Or Component Type
- buffer module
Range Of ProductPhaseo
ETIM
- ETIM 8
- EC000382
ETIM 9EC000382
Output Attributes
- Output Voltage
- (Uin-0.25) V nominal mode DC, (Uin-0.25) V nominal mode DC, (Uin-0.25) V nominal mode DC, (Uin-1) V buffer mode DC, (Uin-1) V buffer mode DC, (Uin-1) V buffer mode DC(Uin-0.25) V nominal mode DC, (Uin-0.25) V nominal mode DC, (Uin-0.25) V nominal mode DC, (Uin-1) V buffer mode DC, (Uin-1) V buffer mode DC
- Number Of Output Channels
- 1
- Output Protection Type
- against overload, protection technology: > 45 Aagainst short-circuits, protection technology: power-supplied mode, automatic resetagainst undervoltage, protection technology: tripping if U < 19 V
Maximum Output Current40 A

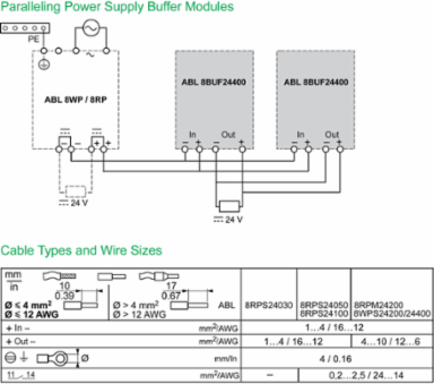

Output Couplingparallel
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 24...28.8 V DC
Input Voltage Limits22...30 V
