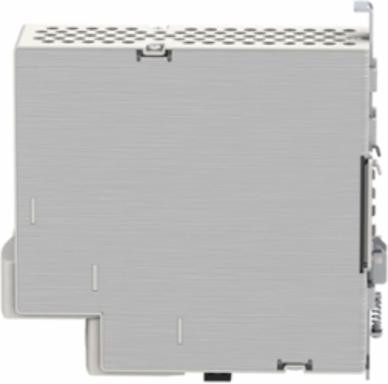

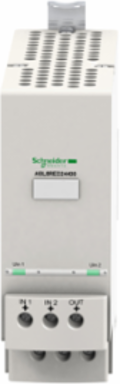

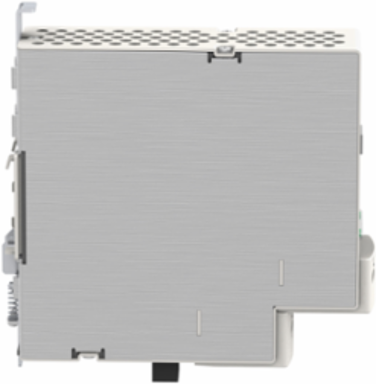

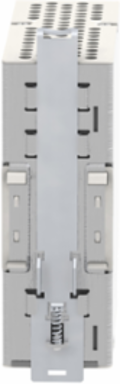

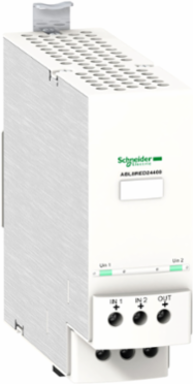

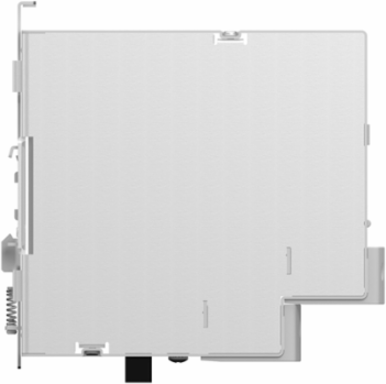

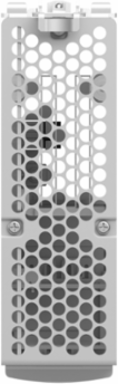

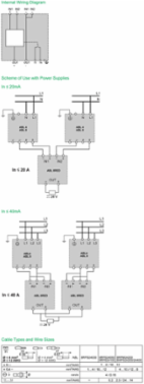

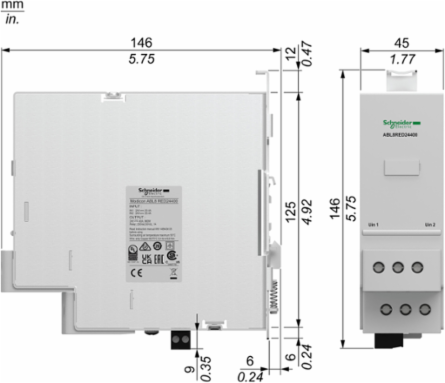

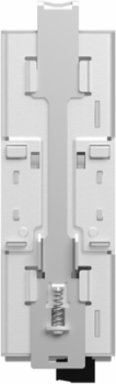

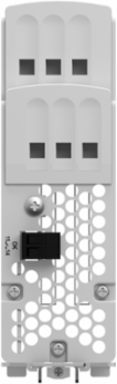

Schneider Electric ABL8RED24400 Redundancy Module 40A, 24-28.8V DC, DIN Rail Mount, 0.7 kg
- MPN: ABL8RED24400
- PPN: SCH-ABL8RED24400
CAD
$256.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This ABL8 redundancy solution supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 40A. This redundancy solution is designed to bring continuity to auxiliary power even during failure of one out of 2 power supply units. It can be used to supply the nominal power to the application even if one of the power supplies is inoperable or otherwise unavailable. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,700kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Philippines, Singapore, United States, ZZ
Complementary Attributes
- Maximum Output Current
- 40 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Dielectric Strength
- 500 V between input and ground, 500 V between output and ground
- Fixing Mode
- by clips 35 mm symmetrical DIN rail horizontal, by clips 35 mm symmetrical DIN rail vertical
- Name Of Test
- electrostatic discharges IEC 61000-4-2emission IEC 61000-6-3, induced electromagnetic field IEC 61000-4-6 level 3radiated electromagnetic field IEC 61000-4-3 level 3rapid transient IEC 61000-4-4 level 3, surge IEC 61000-4-5 level 2conducted/radiated emissions EN 55022 Class B, emission EN 50081-1
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Marking
- CE
- Overvoltage Category
- class II conforming to VDE 0106-1
- Product Or Component Type
- redundancy module
- Returnability
- Yes
- Vibration Resistance
- 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-23.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2
- Pep Code
- ENVPEP1212008EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Environmental CharacteristicEMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-2safety conforming to IEC 60950-1, safety conforming to EN/IEC 61204
Local Signalling1 LED per input (green) for power supply status, 1 relay for power supply status
Certificate AgencyEAC, RCM
Local Publishable Date2026-01-12
Stocking FlagN
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI121208EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1848
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Compatibility CodeABL8R
Mtbf Reliability2488391 H at 24 V DC with UTE C80-810 calculation method
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPhaseo
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminalsfor output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² 20 AWG...8 AWGfor input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² 20 AWG...8 AWGfor diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² 14 AWG
Package Weight(Lbs)630.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Relative Humidity
- 0-90 % during operation, 0-95 % during storage
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1212008EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
China Rohs RegulationX
Circularity ProfileENVEOLI121208EN
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1212008EN
General Attributes
- Product Or Component Type
- redundancy module
Range Of ProductPhaseo
ETIM
- ETIM 8
- EC002540
ETIM 9EC002540
Output Attributes
- Output Protection Type
- against overload, protection technology: external protection by power supply, against short-circuits, protection technology: external protection by power supply
- Maximum Output Current
- 40 A
- Output Coupling
- parallel
Output Voltage(Uin-0.2) V DC, (Uin-0.2) V DC(Uin-0.2) V DC, (Uin-0.2) V DC
Number Of Output Channels1
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 20 A
- Input Voltage Limits
- 22...30 V
Input Voltage24...28.8 V DC
