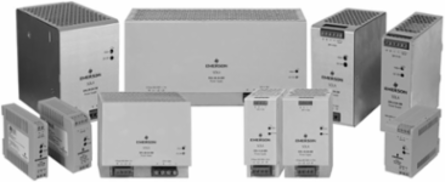

SolaHD SVL412100 Power Supply, 15-480 Watts, Single/Three Phase, DIN Rail Mounting
- MPN: SVL412100
- PPN: SHD-SVL412100
CAD
$113.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SVL Series power supplies are perfect for high volume, controlled environment applications where essential features are the only requirement. The DIN rail mounting capability provides quicker and easier installation while allowing for design flexibility. Some models are certified for Class I, Division 2 hazardous locations. Power supplies with single-phase input power supplies range from 15 to 480 Watts in 5, 12, 24 and 48 Volt combinations. Three-phase input power supplies are available with 24 Vdc output from 120 to 960 Watts.
Features
- cULus, cRUus, CE
- Universal input, single-phase and three-phase models
- Short circuit, over voltage, overload and over temperature protection
- Power factor correction
- Convection cooling
- Select models are Class I, Division 2 certified for hazardous locations
- LED to indicate DC OK and protection diagnostics
- DC OK Relay for single-phase models 120 Watt and larger
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage, Single Phase
- Nominal: 100-240 Vac. Range: 85-264 Vac
- Input Frequency
- 50/60 Hz
- Output Power
- Single phase: 15-480 Watts; Three phase: 120-960 Watts
- Protection Circuit
- Hiccup Mode
- Mounting
- DIN Rail
Input Voltage, Three PhaseNominal: 3 x 400-500 Vac (3-phase); Range: 3 x 320-600 Vac (3-phase); or 2 x 360-600 Vac (2-phase)
Operating Temperature-20°C to +70°C
Output Voltage Range5, 12, 24, 48 Vdc (Three phase: 24 Vdc only)
Diagnostic IndicatorSteady Green LED: DC OK
WarrantyTwo year limited warranty
