Bussmann 16321-3 Power Distribution Block, 600 Vac/Vdc, 175A, Three-Pole, 5.5 Inch Depth
- MPN: 16321-3
- UPC: 051712247641
- PPN: BUS-16321-3
CAD
$181.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

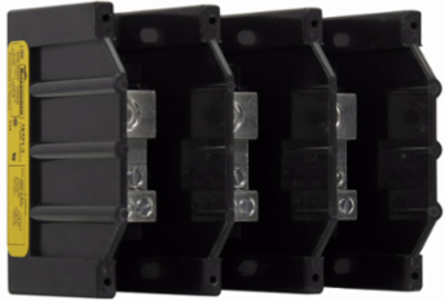

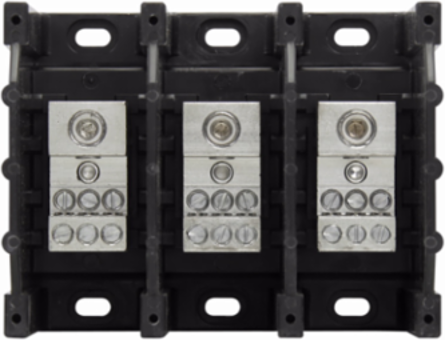

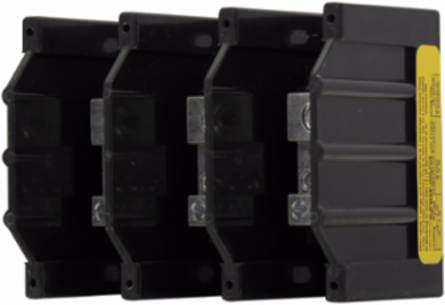

Power Distribution Block, 600 Vac/Vdc, 175A, Three-Pole, 5.5 Inch Depth
Features
- Designed to safely handle 175 amps at up to 600 volts, this robust terminal block provides highly reliable main power delivery for demanding commercial applications. The durable molded thermoplastic base resists high heat and mechanical stress, ensuring your primary power distribution remains stable even in harsh manufacturing or HVAC environments.
- Boasting a massive 100 kA SCCR, this component ensures your control panels can safely withstand severe fault currents without catastrophic failure when paired with proper upstream current-limiting fuses. Relying on high-SCCR, factory-tested hardware makes it effortless for industrial engineers and electricians to achieve strict UL 508A compliance and easily pass local safety inspections.
- The premium tin-plated aluminum terminals are strictly dual-rated to accept both Cu and Al conductors, providing ultimate flexibility for new installations or facility retrofits. This specialized plating actively prevents dangerous galvanic corrosion between dissimilar metals, ensuring secure, low-resistance connections that prevent long-term overheating and reduce routine maintenance downtime.
Documentation & Downloads
Specifications
Additional
- Voltage Rating
- 600 Vac, 600 Vdc
- Short Circuit Rating
- 100 kAIC
- Type
- Power distribution block
- Product Width
- 4 in
- Product Weight
- 1.312 lb
- Color
- Black
Amperage Rating175A
Number Of PolesThree-pole
Product Length/Depth5.5 in
Product Height3 in
MaterialMolded thermoplastic base, Tin-plated aluminum connector
