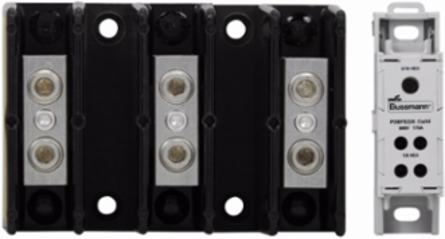

Bussmann PDBFS504 Power Distribution Block, 600 Vac/Vdc, 760A, IP-20 Finger-safe, 4.5 Inch Depth
- MPN: PDBFS504
- UPC: 051712659925
- PPN: BUS-PDBFS504
CAD
$256.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series PDBFS power distribution block, IP-20 Finger-safe, 600 Vac, 600 Vdc, 760 A, SCCR: 200 kA (500 KCMIL), 100 kA (6 AWG To 500 KCMIL), Panel, Tin-plated aluminum connectors
Features
- Engineered to support demanding electrical systems, this high-capacity block safely manages up to 760 Amps at 600 Vac/Vdc. This industrial-grade throughput ensures reliable power delivery across your entire heavy-duty machinery configuration without the risk of overheating or premature equipment degradation.
- With an exceptional SCCR of up to 200 kAIC when paired with 500 kcmil conductors, this distribution block effectively eliminates a frequent "weak link" in industrial control panel compliance.
- The fully enclosed, IP20 finger-safe configuration protects field technicians and panel builders by isolating energized connections and preventing accidental contact with live components.
- Featuring dual primary and secondary openings per pole, the layout simplifies line-to-load splitting while the robust panel-mount design secures your high-gauge cables firmly in place.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 Vac, 600 Vdc
- Short Circuit Rating
- 200 kA (500 KCMIL), 100 kA (6 AWG to 500 KCMIL)
- Height
- 3 in
- Weight
- 1.009 lb
- Mounting
- Panel
- Type
- Power distribution block
- Certifications
- Contact Manufacturer
Amperage760A
Length/Depth4.5 in
Width3 in
MaterialTin-plated aluminum connectors
Ingress RatingIP20
CompliancesContact factory; RoHS Compliant
