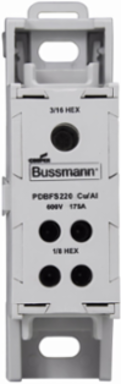

Bussmann PDBFS220 Power Distribution Block, 600 Vac, 600 Vdc, 175A, IP-20 Finger-safe, DIN Rail
- MPN: PDBFS220
- UPC: 051712659826
- PPN: BUS-PDBFS220
CAD
$49.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Outfitted with a versatile dual-mounting base, this component mounts directly onto standard DIN rails via an easy-slide latch or screws into a traditional backpan utilizing its integrated elongated panel slots. Captive, wire-ready termination screws are shipped fully backed out, minimizing installation times and eliminating misplaced hardware on the shop floor.
Features
- To maximize your system's safety and maintain strict compliance with panel standards, this power distribution block delivers a massive 200 kAIC Short-Circuit Current Rating when paired with #12 to #4 AWG conductors. For a smaller branch runs using #14 AWG wire, it still provides a robust 100 kAIC rating, allowing you to tailor your overcurrent protection to exact field requirements without over-engineering your entire layout.
- eaturing a heavy-duty rating of 175 Amps at 600VAC/VDC (and up to 690VAC under IEC criteria), this single-pole block safely manages heavy electrical loads for multi-horsepower motors, industrial machinery, and commercial HVAC equipment. Its high-grade, tin-plated aluminum construction maintains low resistance and excellent thermal stability under maximum continuous run cycles.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 Vac, 600 Vdc
- Short Circuit Rating
- 200 kAIC (12 to 4 AWG), 100 kAIC (14 to 4 AWG)
- Height
- 2.15 in
- Weight
- 0.21 lb
- Material
- Tin-plated aluminum connectors
- Type
- Power distribution block
Amperage175A
Length3.7 in
Width0.99 in
MountingDIN rail, panel
Ingress RatingIP-20 Finger-safe
