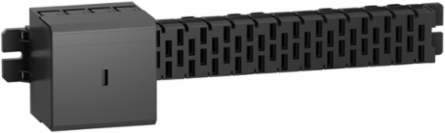

Schneider Electric AK5JB146 Linergy HK Busbar 160A, 4 Conductors, 668 mm, IPxx B
- MPN: AK5JB146
- PPN: SCH-AK5JB146
- UNSPSC: 39131701
CAD
$603.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for effective power distribution, the Schneider Electric AK5JB146 Linergy HK Busbar is designed to handle currents of up to 160A across four conductors. With a length of 668 mm, it offers a robust solution for various electrical installations, ensuring reliable connectivity and efficiency. The busbar s IPxx B rating further enhances its suitability for diverse environments, protecting against debris and moisture while maintaining optimal performance. This product is essential for modern electrical systems that demand both durability and versatility in their power distribution network.
Features
- Applies to distribution 18 Tap-offs and 4 conductor
- The busbars can be screw-mounted onto any type of support
- Panel easily upgradable
- Multi-standard system of up to 160 A
- Compactness with mounting plate version
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 82 mm |
|---|
Physical Attributes
| Bar Length | 668 mm |
|---|
| Bar Width | 45 mm |
|---|
Complementary Attributes
| Ue Rated Operational Voltage | 600 V plugging-in and unplugging, with supply switched off)UL, 400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1480 V off-load plugging-in and unplugging, with supply switched on)CSA, 480 V off-load plugging-in and unplugging, with supply switched on)UL600 V plugging-in and unplugging, with supply switched off)CSA, 690 V plugging-in and unplugging, with supply switched off)IEC 60439-1 |
|---|---|
| Ie Rated Operational Current | 160 A 35 °C |
| Ui Rated Insulation Voltage | 600 V CSA, 600 V UL690 V IEC 60439-1 |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Position | vertical using side stop AK5BT01 on mounting plates AK5PA, horizontal |
| Connections Terminals | connector 2.5-70 mm² flexible with cable end, connector 2.5-70 mm² rigid |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Flame Retardance | V0 conforming to UL 94 |
| Network Type | AC |
| Number Of Tap Offs | 30 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | busbar |
| Range Of Product | AK5 |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Enclosure/Cubicle Width | 800 mm |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Halogen free plastic parts product |
| Warranty In Months | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Protection Type | aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A, gF fuses In = 160 A, Isc = 100 kA, Ie = 160 ANS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A, NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A |
| Certificate Agency | LROS (Lloyds register of shipping), DNV, UL, CSA |
| Local Publishable Date | 2025-08-13 |
| Device Type | Busway & cable - busbar, connection, grounding |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1910 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | distribution |
| Fire Resistance | 850 °C IEC 60695 |
| Network Frequency | 50/60 Hz |
| Number Of Conductors | 4 |
| Peak Current | 25 kA |
| Product Name | HK |
| Range | Linergy |
| Returnability | Yes |
| Tightening Torque | 10 N.m |
| Width Nominal | 81 mm |
| I²T On Activation | 10000000 A².s |
| Customs Code | 8536908585 |
| Silicone Free | Yes |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IPxx B conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | busbar |
|---|
| Range Of Product | AK5 |
|---|
ETIM
| ETIM 8 | EC000091 |
|---|---|
| ETIM 10 | EC000091 |
| ETIM 9 | EC000091 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
