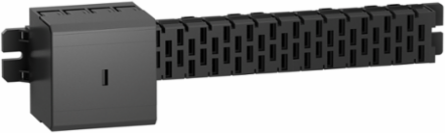

Schneider Electric AK5JB1410 Linergy HK Busbar 160A 4 Conductors 1100mm for 1200mm Enclosure
- MPN: AK5JB1410
- PPN: SCH-AK5JB1410
CAD
$786.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Linergy HK Busbar from Schneider Electric is engineered for robust power distribution, making it a vital component for high-performance electrical systems. With a capacity of 160A and accommodating four conductors, this busbar is specifically designed to fit a 1200mm enclosure, ensuring compatibility and efficiency within your setup. Its 1100mm length allows for seamless integration in various applications, promoting optimal electrical flow and reliability. As part of Schneider Electric's commitment to quality, this busbar is an essential accessory for any automation and control systems that require effective power management.
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth82 mm
Physical Attributes
- Bar Length
- 1100 mm
Bar Width45 mm
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mounting Position
- vertical using side stop AK5BT01 on mounting plates AK5PA, horizontal
- Certificate Agency
- UL, LROS (Lloyds register of shipping), DNV, CSA
- [Ui] Rated Insulation Voltage
- 600 V CSA, 600 V UL690 V IEC 60439-1
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Flame Retardance
- V0 conforming to UL 94
- Network Type
- AC
- Peak Current
- 25 kA
- Product Name
- HK
- Range
- Linergy
- Returnability
- No
- Tightening Torque
- 10 N.m
- Width Nominal
- 81 mm
- Enclosure/Cubicle Width
- 1200 mm
- Number Of Tap-offs
- 54
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Protection TypeaM fuses In = 160 A, Isc = 100 kA, Ie = 160 A, gF fuses In = 160 A, Isc = 100 kA, Ie = 160 ANS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A, NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A
[Ue] Rated Operational Voltage600 V plugging-in and unplugging, with supply switched off)UL, 400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1480 V off-load plugging-in and unplugging, with supply switched on)CSA, 480 V off-load plugging-in and unplugging, with supply switched on)UL600 V plugging-in and unplugging, with supply switched off)CSA, 690 V plugging-in and unplugging, with supply switched off)IEC 60439-1
Connections - Terminalsconnector 2.5-70 mm² flexible with cable end, connector 2.5-70 mm² rigid
Local Publishable Date2025-08-13
Stocking FlagY
Device TypeBusway & cable - busbar, connection, grounding
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1910
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationdistribution
Fire Resistance850 °C IEC 60695
Network Frequency50/60 Hz
Number Of Conductors4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typebusbar
Range Of ProductAK5
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ie] Rated Operational Current160 A 35 °C
I²T On Activation10000000 A².s
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)2.285 kg
Take-backNo
Customs Code8536908585
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Ip Degree Of Protection
- IPxx B conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Halogene PerformanceHalogen free plastic parts product
Toxic Heavy Metal FreeYes
Silicon FreeYes
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- busbar
Range Of ProductAK5
ETIM
- ETIM 8
- EC000091
ETIM 9EC000091
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
