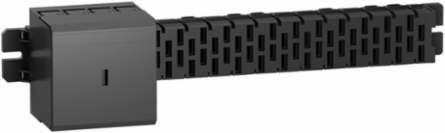

Schneider Electric AK5JB144 Linergy Busbar, 4 Conductors, 160A, 452 mm Length, IPxx B Certified
- MPN: AK5JB144
- PPN: SCH-AK5JB144
CAD
$457.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Linergy busbar for AC network. It applies to distribution, 12 Tap-offs and 4 conductors. The rated operational current is 160 A at 35 °C. Mounting by horizontal and vertical which using side stop AK5BT01 on mounting plates AK5PA. It provides protection for AM fuses, GF fuses and NS160H circuit breaker. IPxx B conforming to IEC 60529 and 850 °C fire resistance conforming to IEC 60695. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It conforms to RoHS.
Documentation & Downloads
Specifications
Key Specifications
- [Ue] Rated Operational Voltage
- 400 V off-load plugging-in and unplugging, with supply switched on)IEC 60439-1 || 480 V off-load plugging-in and unplugging, with supply switched on)CSA || 480 V off-load plugging-in and unplugging, with supply switched on)UL || 600 V plugging-in and unplugging, with supply switched off)CSA || 600 V plugging-in and unplugging, with supply switched off)UL || 690 V plugging-in and unplugging, with supply switched off)IEC 60439-1
- Product Or Component Type
- busbar
- Product Name
- HK
- Enclosure/Cubicle Width
- 800 mm
- Number Of Tap-Offs
- 18
- Device Application
- distribution
Network TypeAC
Bar Length452 mm
RangeLinergy
[Ie] Rated Operational Current160 A 35 °C
Number Of Conductors4
Complementary
- Bar Width
- 45 mm
- Protection Type
- aM fuses In = 160 A, Isc = 100 kA, Ie = 160 A || gF fuses In = 160 A, Isc = 100 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 36 kA, Ie = 160 A || NS160H circuit breaker In = 160 A, Isc = 70 kA, Ie = 160 A
- Net Weight
- 0.9 kg
- Flame Retardance
- V0 UL 94
- Tightening Torque
- 10 N.m
- Depth
- 82 mm
- Peak Current
- 25 kA
Network Frequency50/60 Hz
Connections - Terminalsconnector 2.5-70 mm² flexible with cable end || connector 2.5-70 mm² rigid
Mounting Positionvertical using side stop AK5BT01 on mounting plates AK5PA || horizontal
[Ui] Rated Insulation Voltage600 V CSA || 600 V UL || 690 V IEC 60439-1
Width81 mm
I²T On Activation10000000 A².s
Environment
- Product Certifications
- UL || CSA || DNV || LROS (Lloyds register of shipping)
- Ip Degree Of Protection
- IPxx B IEC 60529
StandardsIEC 60439
Fire Resistance850 °C IEC 60695
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP120206EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
