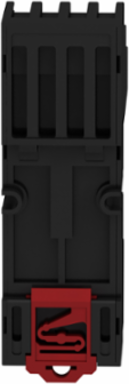

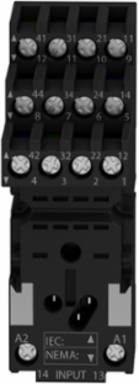

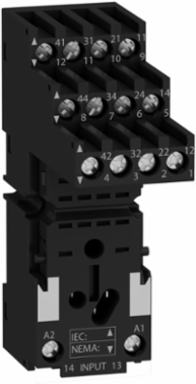

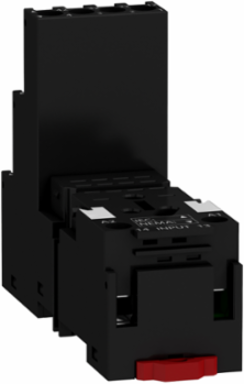

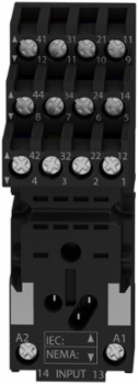

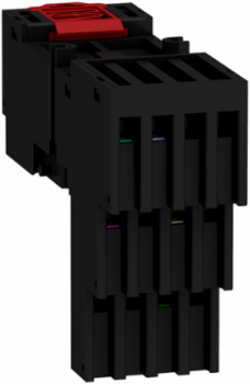

Schneider Electric RXZE2S114M Harmony Electromechanical Relay Socket, 250V AC, 10A, 4 Contacts

  • MPN: RXZE2S114M
  • PPN: SCH-RXZE2S114M
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $14.08

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    "This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

    Features

    • The Schneider Electric RXZE2S114M features a "separate" terminal design that physically isolates the input (coil) terminals from the output (contact) terminals. This logical arrangement allows Canadian panel builders to run control and load wires in separate ducts, reducing electromagnetic interference and making troubleshooting significantly faster for maintenance technicians.
    • Designed with a compact 27mm (1.06in) width, this socket is engineered for space-constrained environments. It allows for high-density mounting of Zelio RXM miniature relays, enabling you to expand your PLC outputs or signal isolation capabilities without upgrading to a larger, more expensive enclosure.
    • This socket is the standard interface for the entire Zelio RXM miniature relay range, specifically the 2-pole (12A) and 4-pole (6A) configurations. This versatility allows you to standardize on one socket model while swapping relays as your switching requirements change, simplifying your spare parts inventory across different machine designs.
    • The RXZE2S114M is designed to accept a rugged plastic or metallic maintaining clamp (sold separately). This ensures the relay remains firmly seated despite the heavy vibrations common in Canadian industrial applications like mining, aggregate processing, or rooftop HVAC units, preventing intermittent signal loss.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, Switzerland, China, France, Singapore, United States

    Physical Attributes

    Wire Stripping Length8 mm

    Complementary Attributes

    Line Rated Current10 A

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Tightening Torque< 1 N.m M3, < 1 N.m M3< 1 N.m M3, < 1 N.m M3
    [Ue] Rated Operational Voltage< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL
    Carbon Footprint Of The Distribution Phase [A4]0.0337385159, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.008299576
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-03-26
    Stocking FlagY
    Service Catalog ItemFinished good
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeRXZ
    Contacts Type And Composition4 C/O
    Dielectric Strength2500 V
    Group Of ProductRXM_4_C/O_CON_SEP_FLAT
    Overvoltage CategoryIII
    Product Or Component Typesocket
    ReturnabilityYes
    Shape Of Pinflat
    Sustainable PackagingYes
    Pep CodeENVPEP2502014EN
    Pep Verification Date2023-01-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27

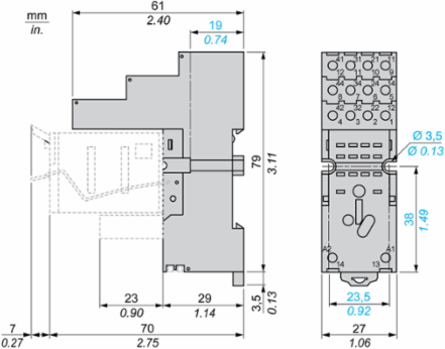

    Width Nominal27 mm
    [Uimp] Rated Impulse Withstand Voltage4 kV
    Package Weight(Lbs)67.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyCSA, Lloyd's, UL
    Connections - Terminalsscrew connectors, screw connectors, 1 x 0.34...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endscrew connectors, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew connectors, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew connectors, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.189754417, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.6804222615
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Contact Terminal Arrangementseparate
    Device Short NameRXZ
    Fixing Modeby screw (panel)clip-on (35 mm symmetrical DIN rail)
    MarkingCE
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony Timer Relays
    Sale Per Indivisible Quantity10
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo allow users to connect and disconnect the plug of an electrical load or the source of a signal from a network; in which the variation of current in one electric circuit controls the flow of electricity in another circuit during 20 years with UL standards E70550.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; CN
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; CN / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; RU / Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %48
    [Ith] Conventional Free Air Thermal Current10 A
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536904000

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-55 °C, -40-55 °C
    Product Compatibilityplug-in relay REXL 4 C/Oplug-in relay RXM 2 C/O, plug-in relay RXM 4 C/O, plug-in relay 782H 4 C/O, plug-in relay REXL 2 C/O
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Environmental DisclosureENVPEP2502014EN
    Ip Degree Of ProtectionIP20 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2023-01-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.9122147703
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2502014EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Typesocket
    Range Of ProductHarmony Timer Relays

    ETIM

    ETIM 8EC001456
    ETIM 9EC001456

    Output Attributes

    Output Typerelay

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
