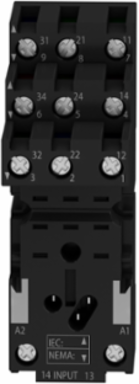

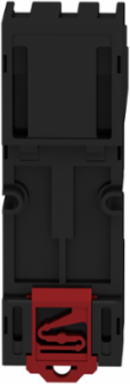

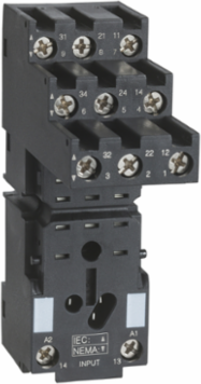

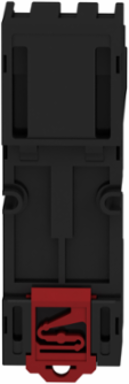

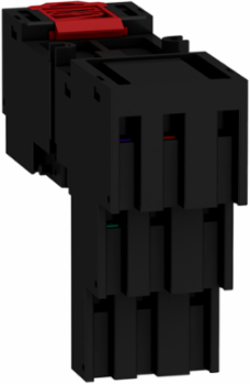

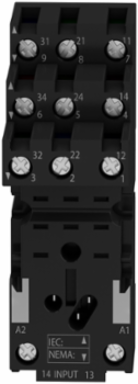

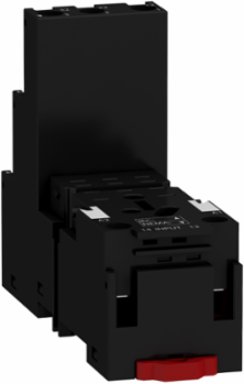

Schneider Electric RXZE2S111M Harmony Electromechanical Relay Socket, 250V AC, 10A, 3C/O Contacts

MPN: RXZE2S111M
PPN: SCH-RXZE2S111M

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$11.38

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 3 changeover contacts 3PDT (triple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Features

Specifically engineered as a dedicated 3-pole mounting base for RXM3 miniature plug-in relays, this socket ensures a perfect mechanical and electrical interface. The precision-fit design prevents vibration-induced loosening, guaranteeing consistent signal integrity and eliminating the risk of intermittent faults in your automated control systems.
With a slim, modular profile, this socket maximizes rail density, allowing you to pack more control logic into smaller enclosures. The compact footprint reduces the overall size of your electrical panels, lowering material costs while maintaining the professional, organized layout required for modern industrial standards.
Designed for ultimate installation flexibility, this base features a quick-snap mechanism for standard 35mm DIN rails and integrated screw holes for direct-to-panel mounting. This versatility allows field technicians to easily integrate the socket into existing legacy systems or new, state-of-the-art builds without needing additional adapters or specialized hardware.
Built with an IP20-rated touch-safe housing and fully certified by UL, CSA, and CE, this socket protects operators from accidental contact with live terminals. Using certified Schneider Electric components ensures your control panels meet international safety regulations, providing peace of mind and ensuring your installation passes rigorous third-party electrical inspections.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Singapore, United States

Physical Attributes

Wire Stripping Length	8 mm

Complementary Attributes

Line Rated Current	10 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Tightening Torque	< 1 N.m M3, < 1 N.m M3< 1 N.m M3, < 1 N.m M3
[Ue] Rated Operational Voltage	< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL< 250 V IEC, < 250 V IEC, < 300 V UL, < 300 V UL
Carbon Footprint Of The Distribution Phase [A4]	0.04700609592646258, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.00033962439028899146, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Terminal Arrangement	separate
Device Short Name	RXZ
Fixing Mode	by screw (panel)clip-on (35 mm symmetrical DIN rail)
Marking	CE
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Harmony Electromechanical Relays
Sale Per Indivisible Quantity	10
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	0.7 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT with a rating of 10A. This product is space-saving design which helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere.It is compatible with plug in relay and it has life span of 20 years and adhering to international standard IEC 61984.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %	46
[Ith] Conventional Free Air Thermal Current	10 A
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	UL, Lloyd's, CSA
Connections - Terminals	screw connectors, screw connectors, 1 x 0.34...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endscrew connectors, 2 x 0.34...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew connectors, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew connectors, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.2 kg CO2 eq., 0.15689999807277694
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.4492687675990233
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	RXZ
Contacts Type And Composition	3 C/O
Dielectric Strength	2500 V
Group Of Product	RXM_3_C/O_CON_SEP_FLAT
Overvoltage Category	III
Product Or Component Type	socket
Returnability	Yes
Shape Of Pin	flat
Sustainable Packaging	Yes
Pep Code	ENVPEP2502014EN
Pep Verification Date	2025-04-14
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.

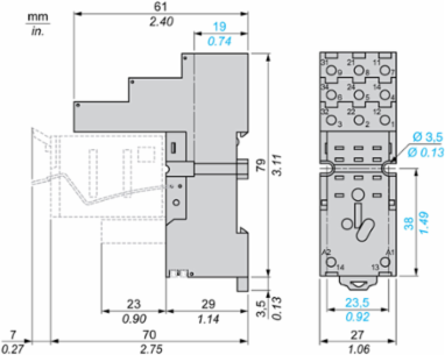

Width Nominal	27 mm
[Uimp] Rated Impulse Withstand Voltage	4 kV
Package Weight(Lbs)	60.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-55 °C, -40-55 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.6535144859885518
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	plug-in relay RXM 3 C/O
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-04-14
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP2502014EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2502014EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
