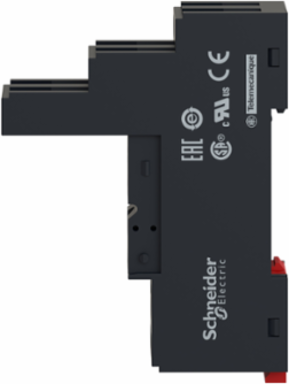

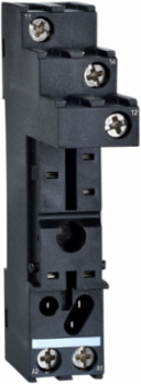

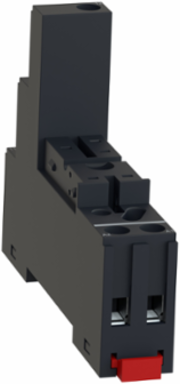

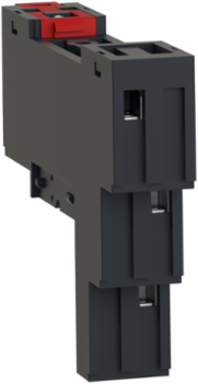

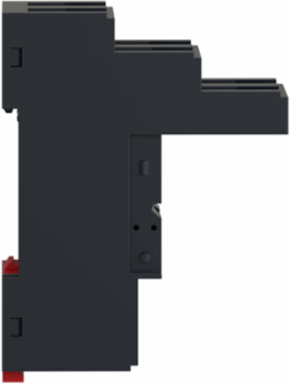

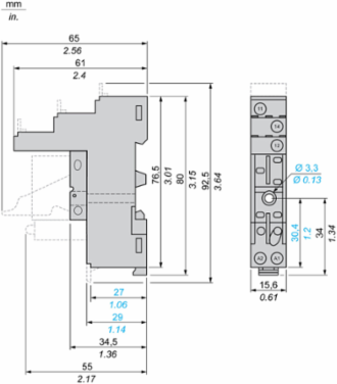

Schneider Electric RSZE1S35M Harmony RSB Socket, 12A, 250V AC, Screw Connectors, IP20
- MPN: RSZE1S35M
- PPN: SCH-RSZE1S35M
CAD
$13.45
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RSB plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RSB range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
Features
- Designed with a "separate" terminal arrangement, this socket keeps input and output signals physically isolated on opposite sides of the base. This intuitive architecture allows for cleaner cable management and prevents cross-talk between control and load circuits, significantly reducing the risk of wiring errors during the assembly of complex automation systems.
- Featuring a versatile dual-mounting system, this socket snaps securely onto standard 35mm DIN rails or can be panel-mounted directly using integrated screw holes. This flexibility makes it a perfect universal solution for both modern high-density PLC racks and traditional wall-mount control boxes, ensuring a stable, vibration-resistant foundation for your RSB interface relays.
- Equipped with rugged screw-clamp terminals, this socket provides high-pressure contact for wires ranging from 20 to 14 AWG. The reliable mechanical grip prevents wires from loosening due to machine vibration or thermal expansion, eliminating intermittent signal failures and reducing the need for frequent preventive maintenance in heavy-duty manufacturing settings.
- Rated with IP20 "finger-safe" protection, this socket prevents accidental contact with live terminals, enhancing operator safety during troubleshooting. With full UL, CSA, and CE certifications, it meets the most stringent global standards for industrial control equipment, ensuring your export-bound machinery or local facility installations are fully code-compliant and built to last.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Italy, Mexico, Singapore, United States
Complementary Attributes
- Line Rated Current
- 12 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- < 0.8 N.m M3, < 0.8 N.m M3< 0.8 N.m M3, < 0.8 N.m M3
- [Ue] Rated Operational Voltage
- < 250 V AC, < 250 V AC< 250 V AC, < 250 V AC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0045157885, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0003163619, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Terminal Arrangement
- separate
- Device Short Name
- RSZ
- Group Of Product
- RSB_1_C/O_SC_CONS_SEP_FLAT_12
- Overvoltage Category
- III
- Product Or Component Type
- socket
- Returnability
- Yes
- Shape Of Pin
- flat
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2502016EN
- Pep Verification Date
- 2021-06-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536698000
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyUL, CSA
Connections - Terminalsscrew connectors, screw connectors, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endscrew connectors, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endscrew connectors, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew connectors, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0053962949
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.3627331968
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeRSZ
Contacts Type And Composition1 C/O
Fixing Modeby screw (panel)clip-on (35 mm symmetrical DIN rail)
MarkingCE
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Electromechanical Relays
Sale Per Indivisible Quantity10
Software VersionEIME v5.9.1
Total Lifecycle Carbon Footprint0.4 kg CO2 eq.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionRGZ socket that can be mounted with RXG relays to facilitate electrical connection of relay and also to provide structural support to relay via attachment to DIN rail during 20 years with the following dimensions 73.3mm x 50.2 mm x 16 mm according to IEC 61984
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Width Nominal15.5 mm
[Uimp] Rated Impulse Withstand Voltage3.6 kV
Package Weight(Lbs)31.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-85 °C, -25-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.3729616422
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- plug-in relay RSB with 1 C/O contact at 12 A
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-06-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2502016EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP2502016EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001456
ETIM 9EC001456
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
