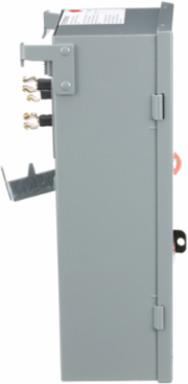

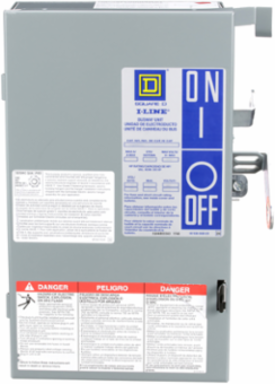

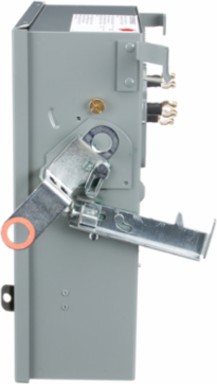

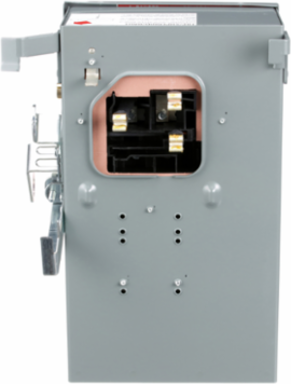

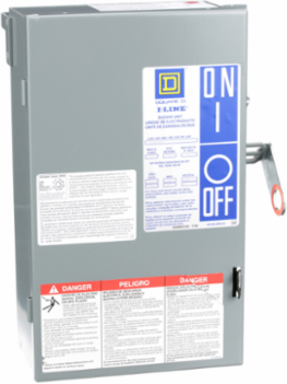

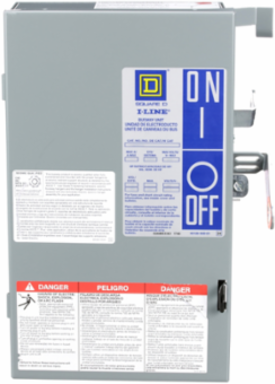

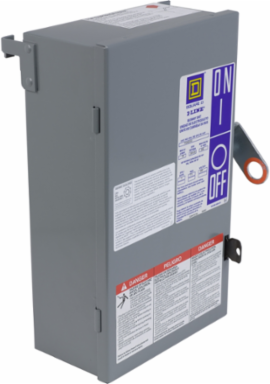

Square D PQ3203G I-Line Busway Plug-in Unit, 30A, 240V AC, 3 Pole, Fusible Disconnect
Square D PQ3203G I-Line Busway Plug-in Unit, 30A, 240V AC, 3 Pole, Fusible Disconnect
- MPN: PQ3203G
- UPC: 785901263944
- PPN: SCH-PQ3203G
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2038.18/ EA
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. I-Line busway is constructed with three pole and four pole full neutral configurations for system voltages to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This 3 pole I-Line fusible plug in unit is for up to 30A 240 VAC Class H fuses. I-Line busway is UL listed and CSA certified.
Specifications
Environment
- Product Certifications
- UL || CSA
Complementary
- Disconnector Device Type
- fusible disconnect
- Busbar Description
- ground
- [Ie] Rated Operational Current
- 30 A
- Number Of Poles
- 3
[Ue] Rated Operational Voltage240 V AC
Fuse TypeH, K, J or R
Electrical Connectionplug-in
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1407016EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1407016EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Specifications
- Range Of Product
- I-Line
Product Or Component Typeplug-in unit
