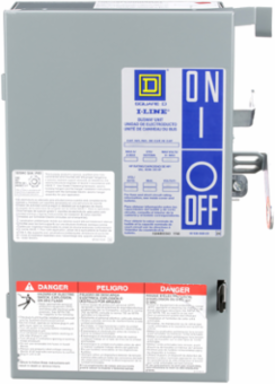

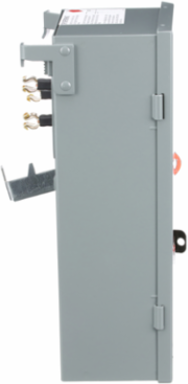

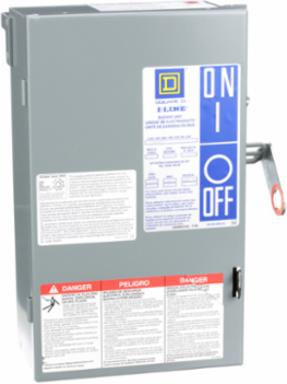

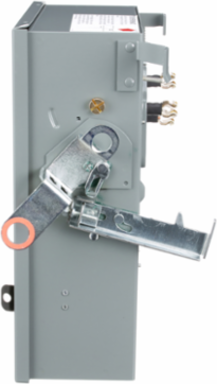

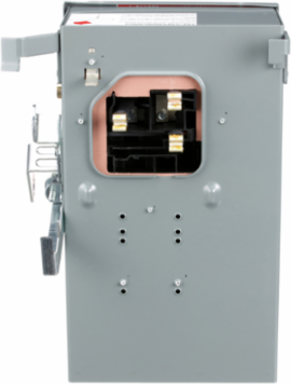

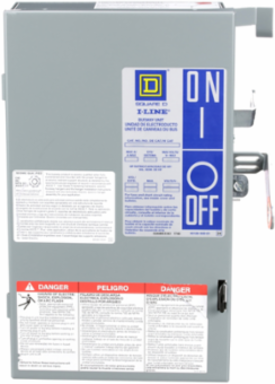

Square D PQ3206G I-Line Busway Plug-in Unit, Fusible, 60A, 240V AC, 3 Pole

MPN: PQ3206G
UPC: 785901263951
PPN: SCH-PQ3206G
UNSPSC: 39131701

$2511.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 60A, 240VAC max, 3 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.

Features

Part of a family of compatible straights, fittings, accessories, and plug-in units for flexible design choices
Fusible or with circuit breaker
Fusible plug in units available through 1200A
Electronic trips and communication packages available for circuit breaker plug in units
Reduced installation time with mounting hook alignment to opening

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Complementary Attributes

Ie Rated Operational Current	60 A

Ue Rated Operational Voltage	240 V AC

Important Information Attributes

Persona Type Ids	LC, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CSA, UL
Local Publishable Date	2025-11-13
Device Type	Busway & cable - LV busway
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Busbar Description	ground
Electrical Connection	plug-in
Fuse Type	H, K, J or R
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	I-Line
Sustainable Packaging	No
Customs Code	8536509045

Persona Type Names	Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI1407016EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1911
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Disconnector Device Type	fusible disconnect
Energy Efficiency Optimized	False
Number Of Poles	3
Product Or Component Type	plug-in unit
Returnability	Yes
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Circularity Profile	ENVEOLI1407016EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1407016EN

Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP1407016EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
