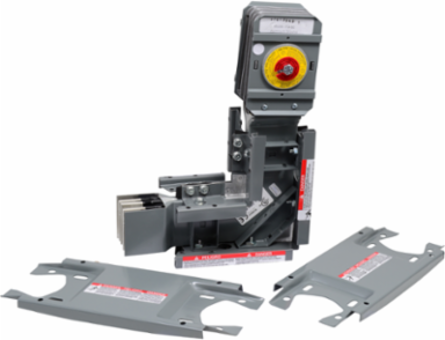

Square D AF2510GLEM11 Elbow, I-Line Busway, 1000A, 4 wire, ground, edge, aluminum, 11 x 11 in

Elbow, I-Line Busway, 1000A, 4 wire, ground, edge, aluminum, 11 x 11 in

Square D AF2510GLEM11 Elbow, I-Line Busway, 1000A, 4 wire, ground, edge, aluminum, 11 x 11 in

MPN: AF2510GLEM11
UPC: 785901807490
PPN: SCH-AF2510GLEM11

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Elbow, I-Line Busway, 1000A, 4 wire, ground, edge, aluminum, 11 x 11 in

Specifications

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1407015EN

Pvc Free: Yes

Eu Rohs Directive: Compliant

Reach Free Of Svhc: Yes

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Toxic Heavy Metal FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

Complementary

Height: 11 in

Busbar Position: edgewise

Wiring Configuration: 4-wire

Network Number Of Phases: 3 phases

[Ue] Rated Operational Voltage: 600 V AC

Materialaluminium: busbar

Protection Type50 percent capacity integral ground bus

[In] Rated Current1000-1000 A

Length11 in

Specifications

Range Of Product: I-Line

Product Or Component Typeelbow
