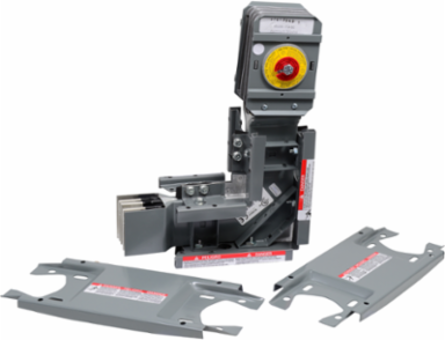

Square D AF2516GLFM13 Elbow, I-Line Busway, 1600A, 4 wire, ground, flat, aluminum, 13 x 13 in

Elbow, I-Line Busway, 1600A, 4 wire, ground, flat, aluminum, 13 x 13 in

Square D AF2516GLFM13 Elbow, I-Line Busway, 1600A, 4 wire, ground, flat, aluminum, 13 x 13 in

MPN: AF2516GLFM13
UPC: 785901812395
PPN: SCH-AF2516GLFM13

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Elbow, I-Line Busway, 1600A, 4 wire, ground, flat, aluminum, 13 x 13 in

Specifications

Complementary

Material: aluminium: busbar

Protection Type: 50 percent capacity integral ground bus

Width: 13 in

Network Number Of Phases: 3 phases

[Ue] Rated Operational Voltage: 600 V AC

Busbar Positionflat

Wiring Configuration4-wire

[In] Rated Current1600-1600 A

Length13 in

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1407015EN

Pvc Free: Yes

Eu Rohs Directive: Compliant

Reach Free Of Svhc: Yes

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Toxic Heavy Metal FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

Specifications

Range Of Product: I-Line
