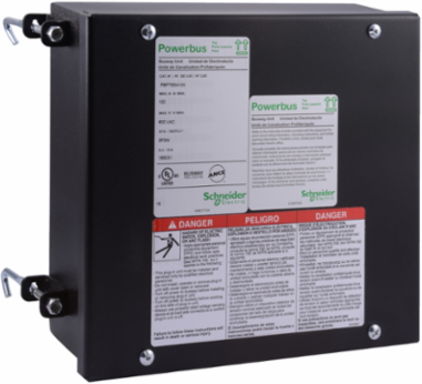

Schneider Electric PBPTB4A100 Plug-in unit, Powerbus busway, tap box, 100A, NEMA 1, breaker not included, 4A config
- MPN: PBPTB4A100
- UPC: 785901642985
- PPN: SCH-PBPTB4A100
CAD
$1704.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Powerbus busway delivers scalable and flexible overhead power distribution. Simple modularity minimizes unintended downtime. Units are available in 100A, 225A, and 400A as well as up to 600V maximum rating. Powerbus busway uses the same Plug-in Units across all busway ampacities. This unit is Plug-in unit tap box that is rated at 100A. The busbar configuration for this tap box is 4A. All busway rating are listed to UL 857 Busway Standard for Safety.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI1312018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1932
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Box Number
- 4A L1 + L2 + N + L3
- Energy Efficiency Optimized
- False
- Phase
- 3 phase
- Product Or Component Type
- tap box
- Range Of Product
- Powerbus
- Sustainable Packaging
- No
- Pep Code
- ENVPEP1312018EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Stocking FlagY
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge10 AWG...2/0 AWG 1 ground6 AWG...300 kcmil 1 phase and neutral
Enclosure MaterialAluminum
Materialsilver plated copper: busbar
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Type50 percent capacity integral ground bus
ReturnabilityYes
Wiring Configuration4-wire (100 percent neutral)
[Ue] Rated Operational Voltage240 V AC
Package Weight(Lbs)4.536 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI1312018EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP1312018EN
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1312018EN
General Attributes
- Phase
- 3 phase
- Range Of Product
- Powerbus
Product Or Component Typetap box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
