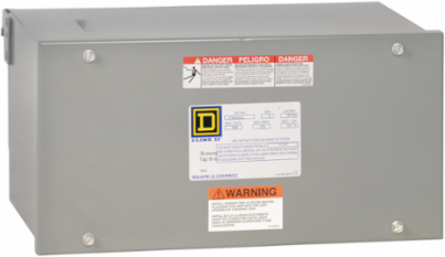

Square D PTB502G Busway, I-Line, plug in unit, tap box, 225A, 4W, 600VAC
- MPN: PTB502G
- UPC: 785901087410
- PPN: SCH-PTB502G
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options up to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations, with Aluminum or Copper conductors, for system voltages up to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug-in tap box is for 225A, 600VAC, 3 phase, 4 wire with integral ground bus systems. I-Line Busway plug-in units are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth197 mm
Complementary Attributes
- Line Rated Current
- 225-225 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E22182, CSA C22.2 No 27
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 12 kg CO2 eq., 12.16737539294601
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 73 kg CO2 eq., 72.95062859905322
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1911
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- 6 AWG...2/0 AWG 1 ground300 kcmil 1 phase and neutral
- Material
- copper
- Phase
- 3 phase
- Product Or Component Type
- tap box
- Returnability
- Yes
- Sustainable Packaging
- No
- Wiring Configuration
- 4-wire (integral ground bus)
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Height Nominal
- 216 mm
- [Ue] Rated Operational Voltage
- 277/480 V AC
- Package Weight(Lbs)
- 8.519 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]16.633077863116082, 17 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.3556662542958895, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]30 kg CO2 eq., 30.07226009268173
Local Publishable Date2025-11-13
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Modeplug-in
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductI-Line
Software Versionv6.2.4
Total Lifecycle Carbon Footprint133 kg CO2 eq.
Pep CodeENVPEP2412020EN
Pep Verification Date2025-01-31
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %92
Width Nominal416 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536908510
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 133.17900820209292
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-01-31
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2412020EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2412020EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
General Attributes
- Phase
- 3 phase
- Range Of Product
- I-Line
Product Or Component Typetap box
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
