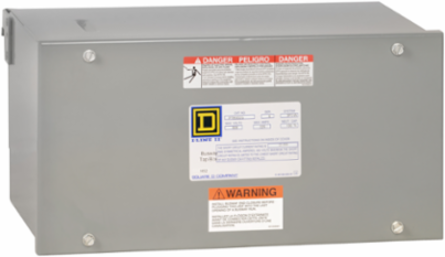

Square D PTB302G I-Line Tap Box, 225A, 277/480 V, Copper, 3-Phase, Plug-In
- MPN: PTB302G
- UPC: 785901087380
- PPN: SCH-PTB302G
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options up to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations, with Aluminum or Copper conductors, for system voltages up to 600 volts. This busway system is rated to allow 100% of the current to flow continuously. This I-Line plug-in tap box is for 225A, 600VAC, 3 phase, 3 wire with integral ground bus systems. I-Line busway is UL listed and CSA certified. I-Line Busway plug-in units are UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 197 mm |
|---|
Complementary Attributes
| Line Rated Current | 225-225 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | UL listed file E22182, CSA C22.2 No 27 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 12 kg CO2 eq., 11.843774983559147 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 71 kg CO2 eq., 71.0104523065252 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Awg Gauge | 6 AWG...2/0 AWG 1 ground300 kcmil 1 phase and neutral |
| Material | copper |
| Phase | 3 phase |
| Product Or Component Type | tap box |
| Returnability | Yes |
| Sustainable Packaging | No |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2412020EN |
| Pep Verification Date | 2025-01-31 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity origin |
| Recyclability Potential In % | 92 |
| Width Nominal | 416 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908510 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 16.190708771011927, 16 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 1.31961130072419, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 30 kg CO2 eq., 30.07226009268173 |
| Local Publishable Date | 2025-11-18 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Mounting Mode | plug-in |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | I-Line |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 130 kg CO2 eq. |
| Wiring Configuration | 3-wire (integral ground bus) |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity origin |
| Energy Model - End Of Life [C1-c4] | Electricity origin |
| Height Nominal | 216 mm |
| [Ue] Rated Operational Voltage | 277/480 V AC |
| Package Weight(Lbs) | 8.292 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 130.4368074545022 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-01-31 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2412020EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2412020EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | I-Line |
| Product Or Component Type | tap box |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
