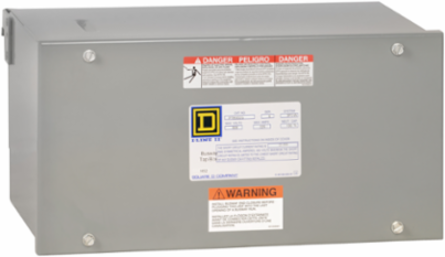

Square D PTB316GH I-Line Tap Box, 800-1600A, Horizontal Mount, 3-Wire, 23.5 Inch x 24 Inch x 28.2 Inch
- MPN: PTB316GH
- UPC: 785901087403
- PPN: SCH-PTB316GH
CAD
$3100.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed to enhance power distribution capabilities, the Schneider Electric PTB316GH I-Line Tap Box is built for horizontal mounting and accommodates a current range of 800 to 1600 amps. This robust unit features a three-wire design, ensuring efficient and effective electrical connections within your system. With dimensions of 23.5 inches by 24 inches by 28.2 inches, it fits seamlessly into a variety of applications, making it an essential component for modern busway systems. Schneider Electric's commitment to quality ensures reliability and performance, making this tap box a valuable addition to any power distribution setup.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 800-1600 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase [A4] | 309.65836447290576, 310 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 25.23846750018943, 25 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 526 kg CO2 eq., 525.670990018211 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Phase | 3 phase |
| Product Or Component Type | tap box |
| Range Of Product | I-Line |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 2 445 kg CO2 eq. |
| Pep Code | ENVPEP2412020EN |
| Pep Verification Date | 2025-01-31 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Functional-unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; United States, US |
| Energy Model - Use [B6] | Electricity origin |
| Recyclability Potential In % | 92 |
| Length Total | 23.5 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC 50/60 Hz |
| Package Weight(Lbs) | 158.757 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 227 kg CO2 eq., 226.52028657080334 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 358 kg CO2 eq., 1358.1234047696078 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1911 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Awg Gauge | 1/0 AWG...600 kcmil |
| Mounting Mode | horizontal |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Type | 50 percent capacity integral ground bus |
| Returnability | Yes |
| Sustainable Packaging | No |
| Wiring Configuration | 3-wire |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity origin |
| Energy Model - End Of Life [C1-c4] | Electricity origin |
| Height Nominal | 28.2 in |
| Width Nominal | 24 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536908585 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 2445.2115133317175 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-01-31 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2412020EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2412020EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | I-Line |
| Product Or Component Type | tap box |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
