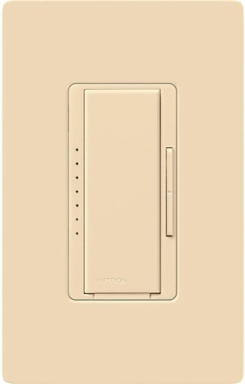

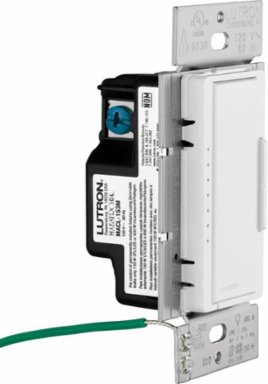

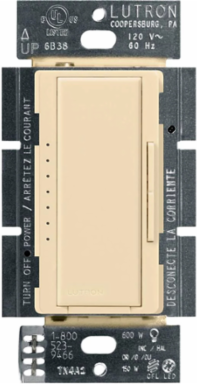

Lutron MACL-153M-IV Maestro LED+ Dimmer Switch, 150W LED/CFL & 600W Incandescent, Ivory
- MPN: MACL-153M-IV
- UPC: 784276010665
- PPN: LUT-MACL-153M-IV
- UNSPSC: 39122206
CAD
$45.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Maestro LED+ dimmer switch provides optimal dimming performance of LED bulbs. This dimmer switch works with up to 150-Watt of dimmable LED/CFL or 600-Watt of incandescent/halogen, allowing you to control multiple bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. Use the rocker to adjust the light level for any activity or set the preset level to ensure lights always turn on to your desired light level. Advanced features include delayed fade to off, which allows time to exit a room or to get into bed before the lights turn off. Coordinating Claro wall plate sold separately.
Features
- Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming.
- Provides over 250 lighting levels so you can create the perfect light for any activity
- Works with up to 150 Watts of dimmable LED/CFL bulbs or 600 Watts of Incandescent/Halogen bulbs
- Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home
- Can be used in single-pole or 3-Way/multi-location dimming applications (up to 10 locations, Maestro companion dimmer MA-RR-XX required)

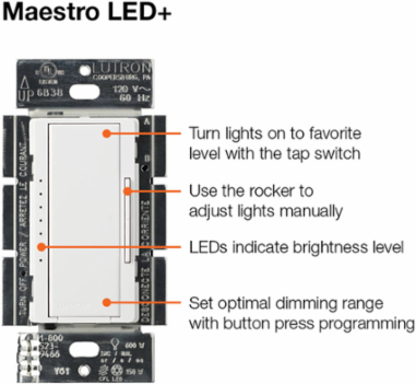

- Easy-to-operate tap switch turns lights on/off to favorite light level. Rocker dims and brightens. Advanced programming settings for features such as customizable delayed-fade-to off
- Installs in as little as 15 minutes in homes of all ages – NO NEUTRAL REQUIRED
- Includes (1) Maestro LED+ (formerly C.L) dimmer switch; coordinating wallplate sold separately
- Capable of controlling up to 150 W Dimmable CFL / LED or 600 W Incandescent / Halogen or Mixed bulb type per Multigang and Mixed Bulb Type Ratings table
- 100% factory tested
- Controls dimmable 150 W LED/CFL (screw-base) or 600 W incandescent/halogen loads
- Provides true dimming from each location (with companion dimmers)
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Documentation & Downloads
Specifications
Key Specifications
- Aesthetic Finish
- Glossy
- Decorative Color
- Ivory
- Family Color
- Beige
- Number of Poles
- 1
- Operating Temperature, Minimum
- 32 F
- Type
- Digital fade dimmer, multi-location/3-way/single-pole
- Wattage
- 600 W
- Face Material
- Metal;Plastic
- Actuator
- Tapswitch
- Connection
- Screw terminal
- Finish
- Gloss
- Material
- Plastic/Metal
- Operating Temperature
- 32 to 104 F
ApplicationLighting Control
Environmental Conditions0 to 90% humidity, non-condensing. Indoor use only.
Frequency Rating, Minimum50 Hz
Operating Temperature, Maximum104 F
Switch TypeTapswitch
Voltage Rating120
Connection TypeScrew Terminal
Frequency Rating50 to 60 Hz
ColorIvory
EnclosurePlastic
InsulationPlastic
MountingWallbox

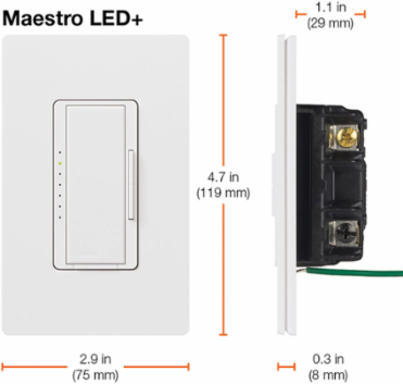

Size4.69 x 2.94;119 x 75 in;mm
