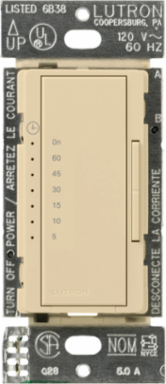

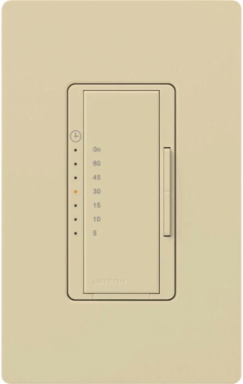

Lutron MA-T51MN-IV Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory

Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
Maestro Countdown Timer Switch, 120V, 600W, 5A, Neutral Required, Ivory
  • MPN: MA-T51MN-IV
  • UPC: 027557290869
  • PPN: LUT-MA-T51MN-IV
  • UNSPSC: 39122208

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$51.30/ EA

Description

The Lutron Maestro Timer Switch for Fans and Lights is rated to work with up to 150W of LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV, or 3A general purpose fans. The Maestro Timer Switch requires a neutral wire making it suitable for DC and high efficiency exhaust fans. The Maestro Timer Switch is compatible with 3-way/multi-location switching applications; Lutron Accessory switches are required (MA-AS/MSC-AS). Use up to 9 Lutron Accessory switches with one Lutron Maestro Timer Switch; existing 3-way switches are not compatible. The Maestro Timer switch completes any project and matches the Maestro aesthetic for areas that don’t require a Maestro dimmer or sensor. Save energy by using the Maestro Countdown Timer in closets, attics, bathrooms, and other low-traffic areas to ensure a light or fan is never left on for a long time. Use the large tap switch to turn the timer on, or double tap for always on; use the raise/lower buttons on the side to adjust to the desired time-out option ranging from 5-60 minutes. Softly lit orange lights indicate the time remaining before turn-off. Top green LED indicator light labeled ON, has no time limit. The bottom LED blinks rapidly to indicate one minute of time remaining. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features

  • Includes (1) Maestro Countdown Timer Switch with Neutral; Gloss Finish

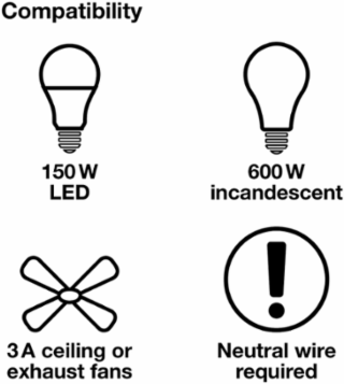

  • Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
  • Neutral required; 120V

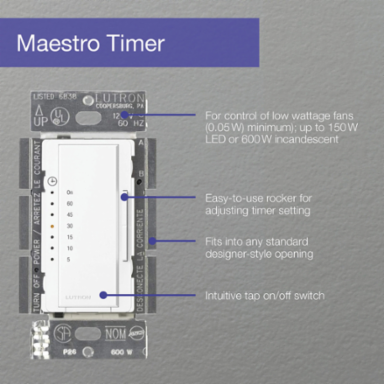

  • 5W/.05A minimum load, suitable for DC and high efficiency exhaust fans

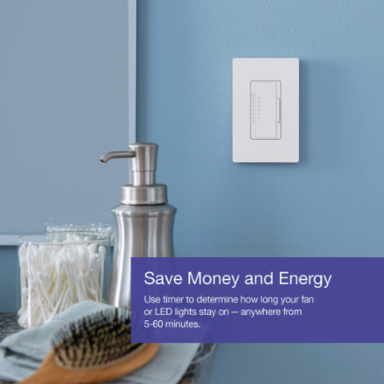

  • Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
  • Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
  • Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch
  • Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
  • Available in 10+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans
  • Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms
  • Use with lighting
  • Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action
  • Touch rocker to adjust countdown time
  • One minute warning before lights/fan go off
  • Timer advanced programming features available.

Specifications

Specifications

Enclosure
Plastic
Size

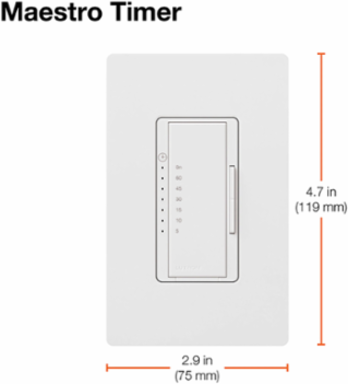

4.69 x 2.94 in
Connection
Screw terminal
Insulation
Plastic
Mounting
Wallbox
Number Of Poles
1
Wattage
600 W
Finish
Gloss
Aesthetic Finish
Glossy
Color
Ivory
TypeCountdown timer control switch, multi-location/single-pole
Contact Rating5 A
Amperage Rating5 A
Contact ConfigurationN-O
Timing Range5 - 60 min
ApplicationLighting Control
Voltage Rating120 V
Family ColorBeige
Decorative ColorIvory
