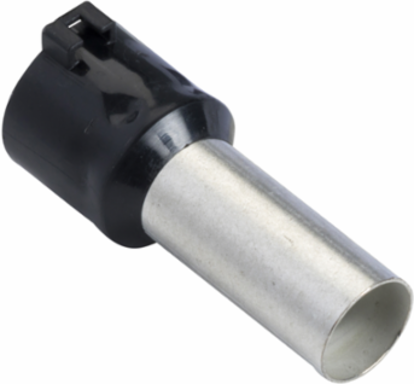

Schneider Electric DZ5CA253 Linergy TR Cable Ends, 25mm² Single Conductor, Black, Medium Size, 100 Sets
- MPN: DZ5CA253
- PPN: SCH-DZ5CA253
CAD
$1.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Linergy cable end insulated for clip-in marker. It applied to single conductor with 25 mm² cable cross section. It has black surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is compliant with Green Premium (RoHS/REACH).
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Linergy
- Product Or Component Type
- cable end
- Cable Cross Section
- 25-25 mm²
- Quantity Per Set
- set of 100
StandardsNF C 63-023
Type Of Packingbag
Cable End Sizemedium
Complementary
- Tube Length
- 22 mm
- Number Of Cables
- 1
- Length
- 36 mm
- Colour
- black
- Bezel Material
- halogen-free plastic
- Additional Information
- for additional marker tag holder
- Cad Overall Depth
- 36 mm
Bezel SizeØ 12 mm
Cable End Typesingle conductor
Net Weight0.156 kg
Awg GaugeAWG 4
Tube Materialcopper ISO 1337
Tube Diameter7.7 mm
Environment
- Ambient Air Temperature For Operation
- -20-105 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304013EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free plastic parts product
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
