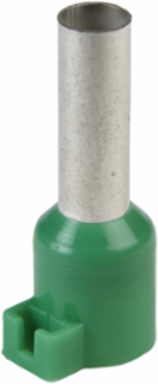

Schneider Electric DZ5CA062 Linergy TR Cable End, Single Conductor, Green, 6mm2, Medium Size, 100 Sets
- MPN: DZ5CA062
- PPN: SCH-DZ5CA062
CAD
$0.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linergy cable end insulated for clip-in marker. It applied to single conductor with 6 mm² cable cross section. It has green surface treatment. It is medium size for additional marker tag holder. Packing by bag and quantity per set is set of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Germany, France
Physical Attributes
- Bezel Size
- Ø 6.9 mm
- Cad Overall Depth
- 20 mm
- Cad Overall Width
- 7 mm
- Tube Length
- 12 mm
Cable End Sizemedium
Cad Overall Height9 mm
ColorGreen
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2405008EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 0627
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- AWG 10
- Cable Cross Section
- 6-6 mm²
- Number Of Cables
- 1
- Product Or Component Type
- cable end
- Range Of Product
- Linergy
- Sustainable Packaging
- No
- Tube Material
- Copper ISO 1337
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Length Total
- 20 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 0.400 g
- Take-back
- No
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2026-03-25
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Bezel Materialhalogen-free plastic
Cable End Typesingle conductor
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 100
ReturnabilityYes
Tube Diameter3.9 mm
Type Of Packingbag
Pep CodeENVPEP2405008EN
Certificate AgencyNF C 63-023
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2405008EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-20-105 °C, -20-105 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2405008EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2405008EN
General Attributes
- Product Or Component Type
- cable end
Range Of ProductLinergy
ETIM
- ETIM 8
- EC000005
ETIM 9EC000005
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Batteries & Runtime Attributes
- Additional Information
- for additional marker tag holder
