Weidmuller 2584050000 CABTITE LNS M40 BK
- MPN: 2584050000
- PPN: WDM-2584050000
CAD
$5.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

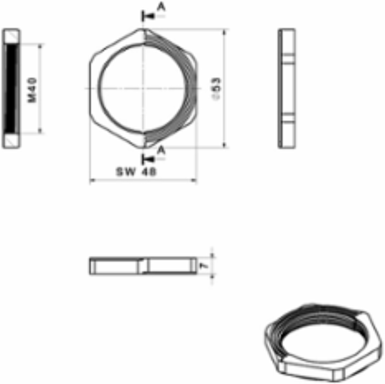

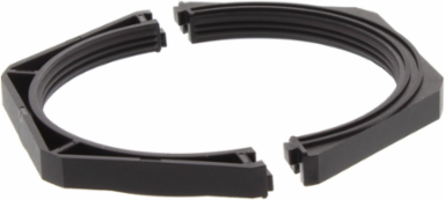

separable locknut, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 48 mm, Width: 48 mm, Depth: 7 mm, -40 °C…120 °C
Documentation & Downloads
Specifications
Dimensions And Weights
| Width | 48 mm |
|---|---|
| Height | 48 mm |
| Depth | 7 mm |
| Net weight | 0.005 g |
| Width (inches) | 1.89 inch |
|---|---|
| Height (inches) | 1.89 inch |
| Depth (inches) | 0.276 inch |
| Diameter | 55 mm |
Classifications
| ETIM 6.0 | EC000940 |
|---|---|
| eClass 9.0 | 27-14-44-24 |
| eClass 10.0 | 27-14-44-24 |
| ETIM 7.0 | EC000940 |
|---|---|
| eClass 9.1 | 27-14-44-24 |
General Information
| UL 94 flammability rating | V-0 |
|---|---|
| Pitch of thread | 1.5 mm |
| AF size 2 | 55 mm |
| Silicone | No |
| External thread | M 40 |
|---|---|
| AF size 1 | 48 mm |
| Halogen | No |
| Material | Polyamide, glass fibre-reinforced |
Approvals
| ROHS | Conform |
|---|
