Weidmuller 2583470000 CABTITE FR 16/8 BK
- MPN: 2583470000
- PPN: WDM-2583470000
CAD
$44.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

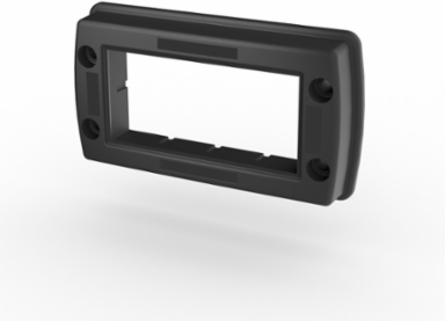

Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 70 mm, Width: 126 mm, Depth: 19.6 mm, -40 °C…120 °C, IP54, IP65, IP66
Documentation & Downloads
Specifications
Classifications
- ETIM 6.0
- EC002624
- eClass 9.0
- 27-18-28-15
- eClass 10.0
- 27-18-28-15
ETIM 7.0EC002624
eClass 9.127-18-92-65
Approvals
- Approvals
- cURus
- UL File Number Search
- E223801
ROHSConform
General Information
- Tightening torque
- 3 Nm
- Opening length
- 91 mm

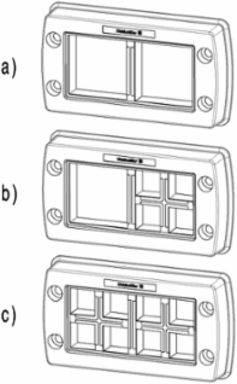

- Sealing element
- 2 large sealing elements or 4 small sealing elements or 1 large sealing element and 4 small sealing elements or 8 small sealing elements
- Silicone
- No
- Material
- Polyamide, glass fibre-reinforced
Opening width46 mm
UL 94 flammability ratingV-0
HalogenNo
SealingTPE

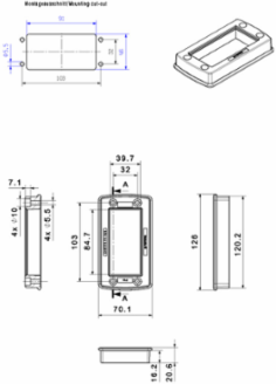

Dimensions And Weights
- Width
- 126 mm
- Height
- 70 mm
- Height of lowest version
- 19.6 mm
- Depth (inches)
- 0.772 inch
- Mounting dimension - height
- 103 mm
- Diameter
- 5.5 mm
Width (inches)4.961 inch
Height (inches)2.756 inch
Depth19.6 mm
Mounting dimension - width32 mm
Net weight51.7 g
