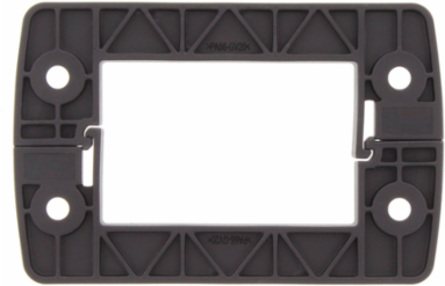

Weidmuller 2584240000 CABTITE FRL 10/6 BK
- MPN: 2584240000
- PPN: WDM-2584240000
CAD
$12.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Locking frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 68.8 mm, Width: 105 mm, Depth: 11.3 mm, -40 °C…120 °C
Documentation & Downloads
Specifications

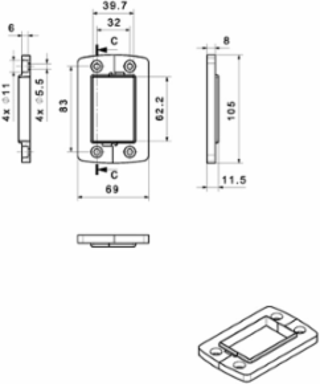

Dimensions And Weights
| Width | 105 mm |
|---|---|
| Height | 68.8 mm |
| Height of lowest version | 11.3 mm |
| Depth (inches) | 0.445 inch |
| Mounting dimension - height | 83 mm |
| Diameter | 5.5 mm |
| Width (inches) | 4.134 inch |
|---|---|
| Height (inches) | 2.709 inch |
| Depth | 11.3 mm |
| Mounting dimension - width | 32 mm |
| Net weight | 27.6 g |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E223801 |
| ROHS | Conform |
|---|
General Information
| Tightening torque | 3 Nm |
|---|---|
| Opening length | 62.8 mm |
| Halogen | No |
| Material | Polyamide, glass fibre-reinforced |
| Opening width | 40 mm |
|---|---|
| UL 94 flammability rating | V-0 |
| Silicone | No |
Classifications
| ETIM 6.0 | EC002624 |
|---|---|
| eClass 9.0 | 27-18-28-15 |
| eClass 10.0 | 27-18-28-15 |
| ETIM 7.0 | EC002624 |
|---|---|
| eClass 9.1 | 27-18-92-65 |
