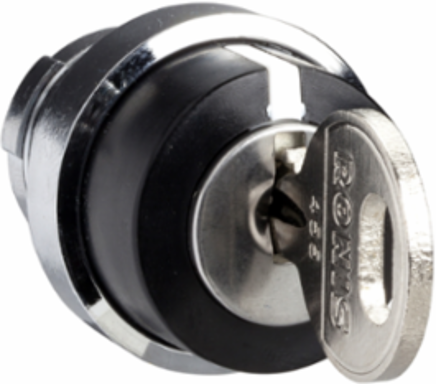

Schneider Electric KAXZ1S142 Harmony K Cam Switch Operating Head 22mm, Metal, IP65, Key Operated
- MPN: KAXZ1S142
- PPN: SCH-KAXZ1S142
CAD
$41.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Harmony K Cam Switch Operating Head from Schneider Electric is engineered for secure and reliable operation in industrial environments. This key-operated switch, featuring a durable metal construction and an IP65 rating, ensures robust performance while protecting against dust and water ingress. With a compact 22mm design, it is ideally suited for integration into various automation and control applications, offering ease of access and control in demanding settings. With its dependable functionality and thoughtful design, this cam switch head stands out as a key component for enhancing operational safety and efficiency.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI071103EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Cam Switch Head Type
- with bezel Ø 28.5 mm, metal
- Component Name
- KAX
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Shock Resistance
- 30 gn IEC 68-2-27
- Switching Angle
- 45 °
- Vibration Resistance
- 5 gn 10-150 Hz)IEC 68-2-6
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Product Kit IdentifierN
Compatibility CodeKAX
Mechanical Durability1000000 cycles
Product Or Component Typecam switch operating head
Range Of ProductHarmony Series K
Rotary Handle Padlockingwithout
Sustainable PackagingNo
Type Of Operatorkey key 421
Pep CodeENVPEP071103EN
Package Weight(Lbs)68.039 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Ip Degree Of Protection
- IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP071103EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- front mounting bodies 12 and 20 A Ø 22 mm hole
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI071103EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP071103EN
General Attributes
- Product Or Component Type
- cam switch operating head
Range Of ProductHarmony Series K
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with mat black
