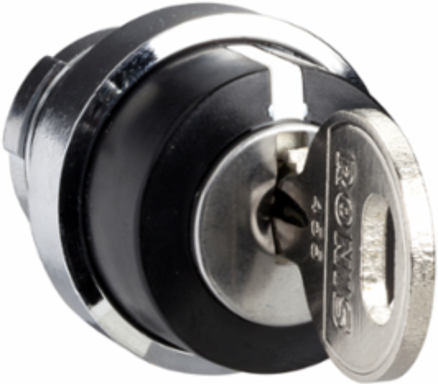

Schneider Electric KAXZ1S141 Harmony K Key Operated Cam Switch Head, 22mm, Metal, IP65, 45 Switching Angle
- MPN: KAXZ1S141
- PPN: SCH-KAXZ1S141
CAD
$45.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for durability and reliability, the Harmony K Key Operated Cam Switch Head from Schneider Electric is a valuable addition to automation and control systems. With its robust metal construction and IP65 protection rating, it ensures resilience against dust and moisture, making it ideal for demanding industrial environments. The 22mm size facilitates seamless integration into panels, while the 45 switching angle offers versatility in operation. This product is designed to enhance control processes, providing a dependable solution for various applications in industrial settings.
Features
- ngineered for seamless integration, this Schneider Electric Harmony K series cam switch operating head is designed specifically for front mounting bodies rated at 12 A and 20 A with a standard 22 mm panel cut-out. This precise mechanical matching eliminates physical alignment issues during retrofits or new industrial panel builds, saving valuable installation time and ensuring immediate compatibility with your existing rotary switches.
- Featuring an industry-standard Ronis 455 key profile, this operating head provides robust, key-locking access control to prevent unauthorized parameter adjustments or accidental machinery start-ups. It operates on a precise 45-degree indexing switching angle, giving control technicians tactile confirmation that the switch has securely engaged without slipping between positions.
- Built with a rugged, high-strength metal bezel ( 28.5 mm), this heavy-duty rotary cam switch component carries a certified IP65 ingress protection rating (conforming to IEC 529 and NF C 20-010). This ensures your control circuits remain fully operational and completely sealed against airborne dust, splashing water, and oily washdowns common in demanding automation settings.
- Engineered to reduce maintenance overhead and downtime, the KAXZ1S141 boasts a mechanical durability rating of up to 1,000,000 operational cycles. This extreme duty cycle means your automation systems benefit from prolonged, trouble-free switching performance under high-frequency industrial use, eliminating the need for frequent replacement parts.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Physical Attributes
- Cad Overall Depth
- 21 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Compatibility Code
- KAX
- Mechanical Durability
- 1000000 cycles
- Product Or Component Type
- cam switch operating head
- Range Of Product
- Harmony Series K
- Rotary Handle Padlocking
- without
- Sustainable Packaging
- No
- Type Of Operator
- key key 455
- Pep Code
- ENVPEP2312055EN
- Package Weight(Lbs)
- 67.000 g
- Warranty (In Months)
- 18
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Cam Switch Head Typewith bezel Ø 28.5 mm, metal
Component NameKAX
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Shock Resistance30 gn IEC 68-2-27
Switching Angle45 °
Vibration Resistance5 gn 10-150 Hz)IEC 68-2-6
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Ip Degree Of Protection
- IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312055EN
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Environmental DisclosureENVPEP2312055EN
Packaging Made With Recycled CardboardNo
Product Compatibilityfront mounting bodies 12 and 20 A Ø 22 mm hole
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- cam switch operating head
Range Of ProductHarmony Series K
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with mat black
