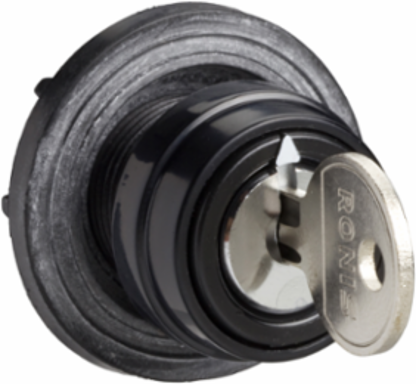

Harmony K Cam Switch Operating Head 22mm, Key Operated, IP65
Schneider Electric

Schneider Electric KAC1S Harmony K Cam Switch Operating Head 22mm, Key Operated, IP65

  • MPN: KAC1S
  • PPN: SCH-KAC1S

CAD

$95.68

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

The KAC1S Harmony K Cam Switch Operating Head from Schneider Electric is designed for seamless integration into various automation and control systems. This 22mm key-operated switch offers a reliable and secure means of operation while ensuring IP65 protection against dust and water ingress, making it ideal for use in demanding environments. Engineered for versatility, this component is an essential accessory for pilot devices, delivering both functionality and dependability in automation applications. Whether you're updating existing systems or developing new solutions, this cam switch operating head enhances operational control with its straightforward yet robust design.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Czechia, France

Physical Attributes

Cad Overall Depth
69 mm
Cad Overall Width
45 mm
Cad Overall Height45 mm

Important Information Attributes

Switching Angle
45 °, 90 °
Local Publishable Date
2026-01-12
Stocking Flag
Y
Weee Scope
Out
Eoli Availability Display
Yes
Reach Full Compliance Status
Free of Substances of Very High Concern above the threshold
Reach Compliance Directive
Free of Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant
Rohs Eur Full Compliance Status
Compliant
China Rohs Label
1
Without Single Use Plastic
No
Product Kit Identifier
N
Compatibility Code
KAC
Mechanical Durability
1000000 cycles
Product Or Component Type
cam switch operating head
Range Of Product
Harmony Series K
Rotary Handle Padlocking
without
Sustainable Packaging
No
Vibration Resistance
5 gn 10-150 Hz)IEC 68-2-6
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8538908180
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI071103EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Cam Switch Head Typewith front plate 45 x 45 mm
Component NameKAC
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTC
ReturnabilityYes
Shock Resistance30 gn IEC 68-2-27
Type Of Operatorkey 601A
Pep CodeENVPEP071103EN
Package Weight(Lbs)69.0 g
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-25-55 °C, -25-55 °C
Ip Degree Of Protection
IP65 conforming to IEC 529, IP65 conforming to NF C 20-010
Reach Free Shvc
Yes
China Rohs Regulation
X
Mercury Free
Yes
Environmental Disclosure
ENVPEP071103EN
Packaging Made With Recycled Cardboard
No
Product Compatibility
front mounting bodies 12 and 20 A Ø 22 mm hole
Reach Regulation
Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Circularity ProfileENVEOLI071103EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach Free Of SvhcYes
Pep CodeENVPEP071103EN

General Attributes

Product Or Component Type
cam switch operating head
Range Of ProductHarmony Series K

ETIM

ETIM 8
EC000222
ETIM 9EC000222

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Overview Attributes

Presentation Of Legend
with mat black
