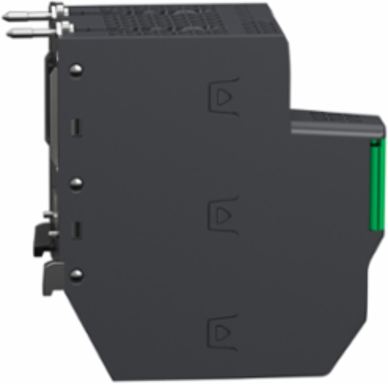

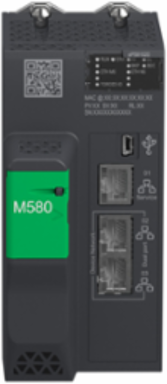

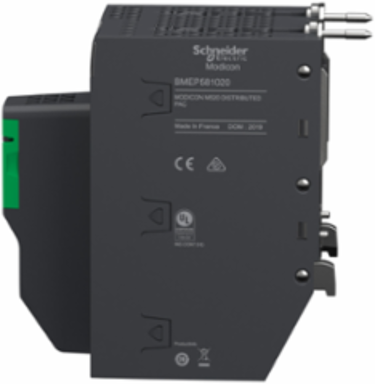

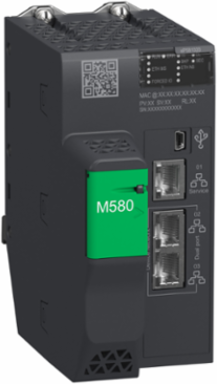

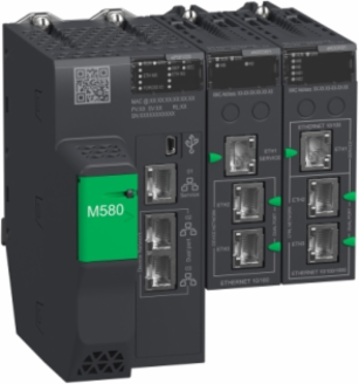

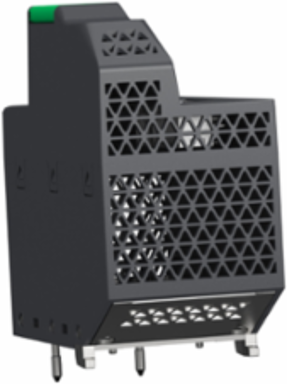

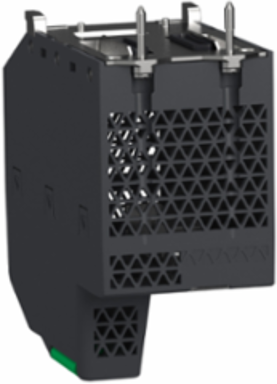

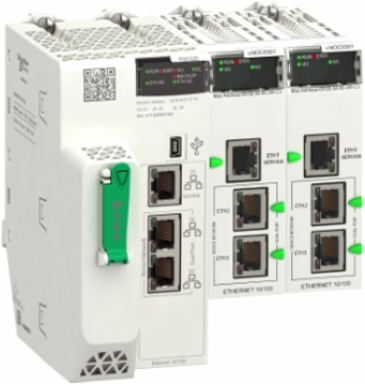

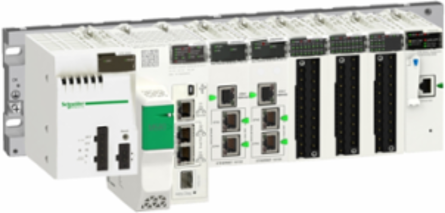

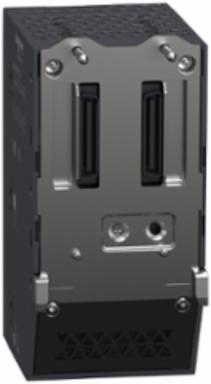

Schneider Electric BMEP581020 Modicon M580 Processor Module 4MB RAM, 1024 Discrete I/O, IP20
- MPN: BMEP581020
- PPN: SCH-BMEP581020
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 4 rack configuration and 36 application specific channels. It is a processor module with a current consumption of 270mA at 24V DC. It supports 1024 discrete, 256 analogue local I/O channels and 64 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 4MB for program, 384kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon M580
Product Or Component Typeprocessor module
Complementary
- Mtbf Reliability
- 775000 H
- Communication Module Processor Capacity
- 2 Ethernet communication module || 8 AS-Interface module
- Number Of Racks
- 4
- Current Consumption
- 270 mA 24 V DC
- Integrated Connection Type
- 1 Ethernet TCP/IP service port || 2 Ethernet TCP/IP device network || USB type mini B
- Number Of Instructions Per Ms
- 7.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 10 Kinst/ms 100 % Boolean
- Discrete I/O Processor Capacity
- 1024 I/O
- Memory Description
- integrated RAM, 4 MB program || integrated RAM, 384 kB data || expandable flash, 4 GB data storage || integrated RAM, 10 kB system memory
- Number Of Application Specific Channel
- 36
Number Of Distributed Equipment64
Communication ServiceDIO scanner
MarkingCE
Application Structure1 periodic fast task || 2 auxiliary tasks || 1 cyclic/periodic master task || 64 event tasks
Application Specific I/Oaccurate time stamping || motion control || counter || HART || SSI encoder || serial link
CybersecurityAchilles certified || DoS prevention || IPSec || SNMP logging || Syslog protocol support || transport layer security || audit trail || embedded firewall || firmware signature || password protection || port hardening || secure communiction (HTTPS) || security log
Analogue I/O Processor Capacity256 I/O
Control Channelsprogrammable loops
Checksprocess control
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1312016EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1312016EN
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Standards
- IEC 61131-2 || IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
- Supply
- internal power supply via rack
- Environmental Characteristic
- hazardous location class I division 2
- Net Weight
- 0.849 kg
- Ambient Air Temperature For Storage
- -40-85 °C
- Operating Altitude
- 0...2000 m || 2000...5000 m with derating factor
Status Led1 LED (green) processor running (RUN) || 1 LED (red) processor or system fault (ERR) || 1 LED (red) I/O module fault (I/O) || 1 LED (green) download in progress (DL) || 1 LED (red) memory card or CPU flash fault (BACKUP) || 1 LED (green/red) ETH MS (Ethernet port configuration status) || 1 LED (green/red) Eth NS (Ethernet network status)
Product CertificationsCE || UL || CSA || RCM || EAC || Merchant Navy
Shock Resistance30 gn
Vibration Resistance3 gn
Directives2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
Relative Humidity5-95 % 55-55 °C without condensation
Ip Degree Of ProtectionIP20
