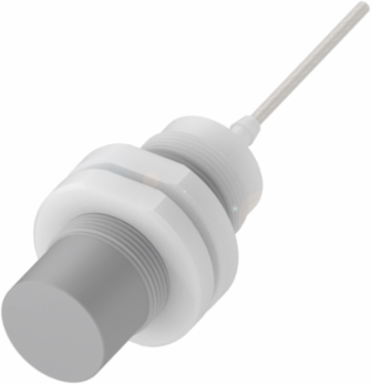

Balluff BCS M30TTH2-PSCFAG-AT02 Capacitive Level Sensor, 30 x 72 mm, PNP NO, PTFE Housing, IP67
- MPN: BCS M30TTH2-PSCFAG-AT02
- PPN: BAL-BCS0086
CAD
$532.84
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These capacitive sensors used for fill level detection detect the product, bulk material or liquids to be detected with their active surface in contact with the media. Their spherical electrical field effectively compensates for deposits on the sensing surface of the sensor.
Documentation & Downloads
Specifications
Additional
| Switching Output | PNP Normally Open (NO) |
|---|---|
| Switching Frequency | 2 Hz |
| Dimension | D8 30 x 72 mm |
| Cable Length | 2 m |
| Sensing Surface Material | PTFE |
| Approval/Conformity | CE, cULus, WEEE |
| Installation | Non-flush |
| Sensitivity | Media-dependent, adjustable |
| Operating Voltage | 10-35 VDC |
|---|---|
| Ambient Temperature Range | -10 to 60 B0C |
| Thread Size | M30x1.5 |
| Housing Material | PTFE |
| IP Rating | IP67 |
| Additional Features | Electrically conductive media, Foam and residue compensation |
| Series | M30 |
