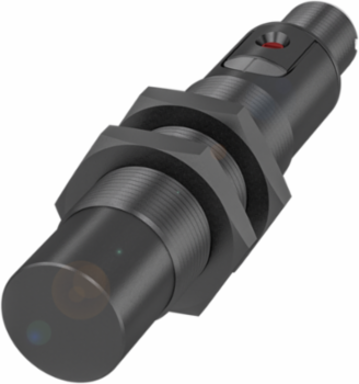

Balluff BCS M18BBG2-PSC15H-S04K Capacitive Level Sensor, M18 Thread, Ø 18 x 88.5 mm, IP67
Balluff BCS M18BBG2-PSC15H-S04K Capacitive Level Sensor, M18 Thread, Ø 18 x 88.5 mm, IP67
- MPN: BCS M18BBG2-PSC15H-S04K
- PPN: BAL-BCS00LM
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$157.80/ EA
Description
The Balluff capacitive level sensor is a robust and reliable solution for precise level detection in various applications. With an adjustable sensing range of 2 to 15 mm and a durable M18x1 threaded design, this sensor is built to withstand challenging environments, featuring an IP67 rating that ensures protection against dust and water ingress. Its PBT housing and sensing surface provide excellent durability, while the ability to operate within a wide temperature range of -25 to 85 °C makes it suitable for diverse industrial settings. The sensor also supports a PNP normally open switching output with a frequency of up to 100 Hz, ensuring efficient and responsive performance.
Specifications
Specifications
- Country of Origin
- Hungary
- Series
- M18
- Installation
- non-flush
- Switching output
- PNP Normally open (NO)
- Range
- 2...15 mm
- Housing material
- PBT
- Ambient temperature
- -25...85 °C
- Approval/Conformity
- CE; UKCA; cULus; WEEE
DimensionØ 18 x 88.5 mm
Thread (A)M18x1
ConnectionConnector, M12x1-Male, 4-pin
Switching frequency100 Hz
SensitivitySwitching distance adjustable
Material sensing surfacePBT
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
